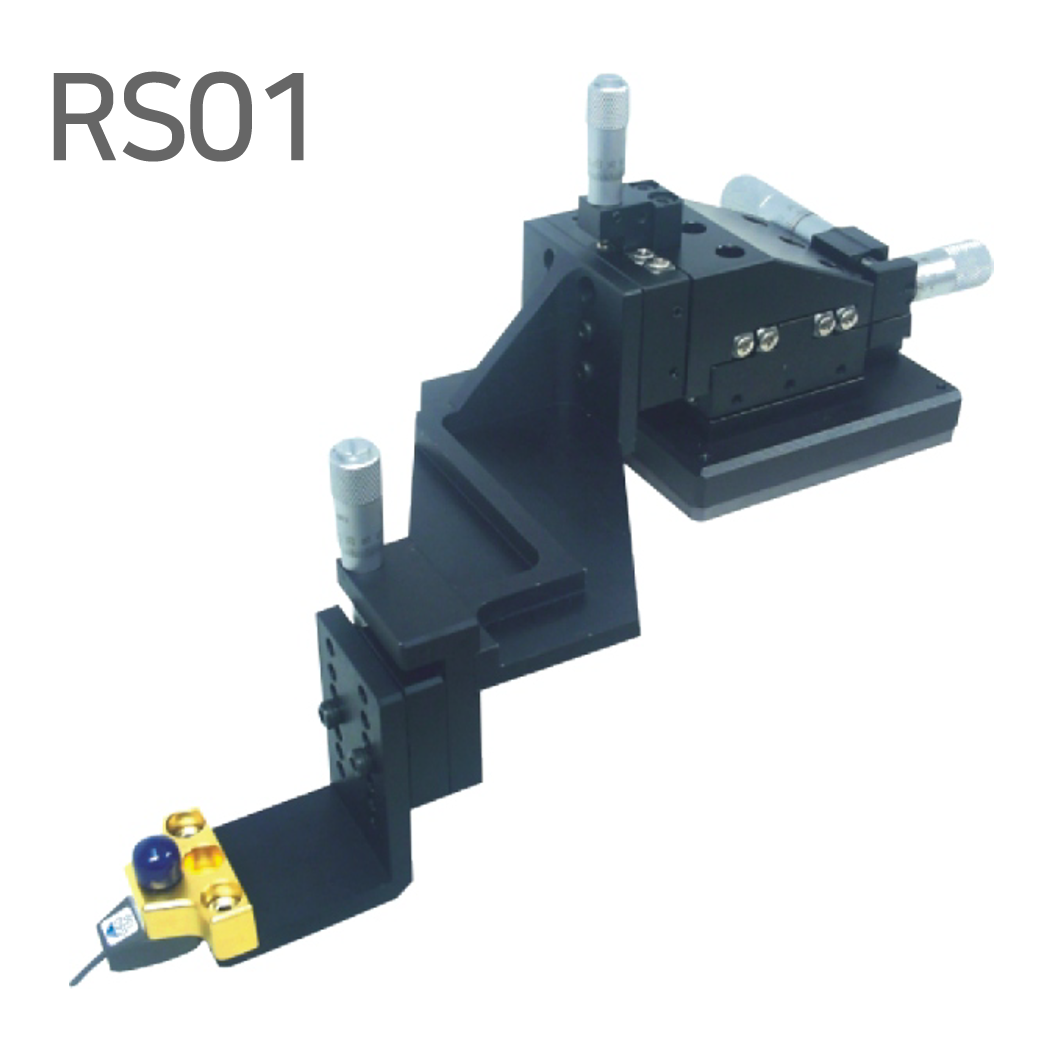

RF Positioner Micro Positioner(MP)

RF 포지셔너 - R 시리즈

Accurate X and Y placement and precise probe over travel with easily adjusted knobs

3 linear axes with precision ball bearings

Adjustable probe arm mounting plate

Captivated stages with lead screw design

High precision cross-roller bearings

Can be ordered with either.
- Vacuum base
- Switch type magnetic base with residual holding force

Fine screw: 0.125mm pitch

13mm(0.5 inch) travel in X, Y and Z stage (Z-axis control: cs=down, ccw=up)

Application: 50 µm under PAD
