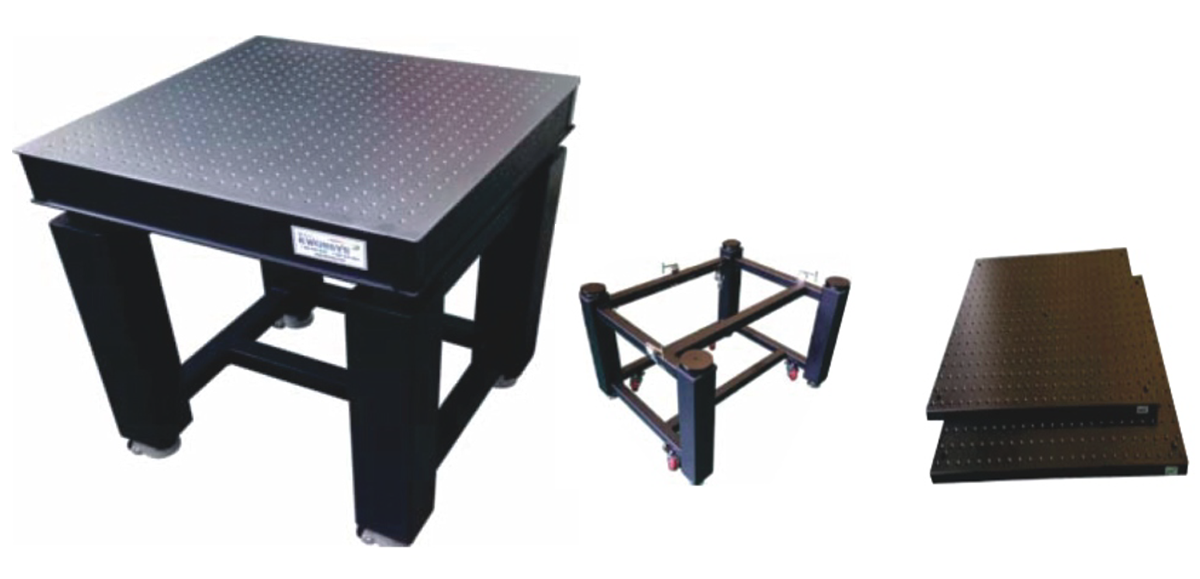

Anti-vibration-Table

Anti-vibration Table Specifications

Easy to detailed micro control and loading heavy-load

Excellent damping effect and horizontal, vertical vibration control function

Easy to conserve the working space and easy to separate/assemble

Automatic power off in overload by applying the built-in circuit breaker

Can fix the frame and optical table as possible to manufacture the M6 counter bore

Mass is low and rigid is excellent honeycomb structure (can apply honeycomb optical table)

Shorten stabilizing hours by removing micro vibrating of the external environment

OPTIC TABLE

Model	Size(mm)	Thickness (mm)
KOP-0606	600 x 600	50/100
KOP-1075	100 x 750	50/100
KOP-2010	1500 x 1500	100/200
KOP-2015	4000 x 1500	200/300/400

Isolation	pneumatic type
Natural Frequency	1.2 ~ 1.5Hz, Vertical 1.5 ~ 2 Hz, Horizontal
Auto level control	3 auto level control Repeatability: ±0.1mm
Load Capacity	400kg ~ 2,000kg
Air Supply	5 ~ 7 kgf/cm2 Air

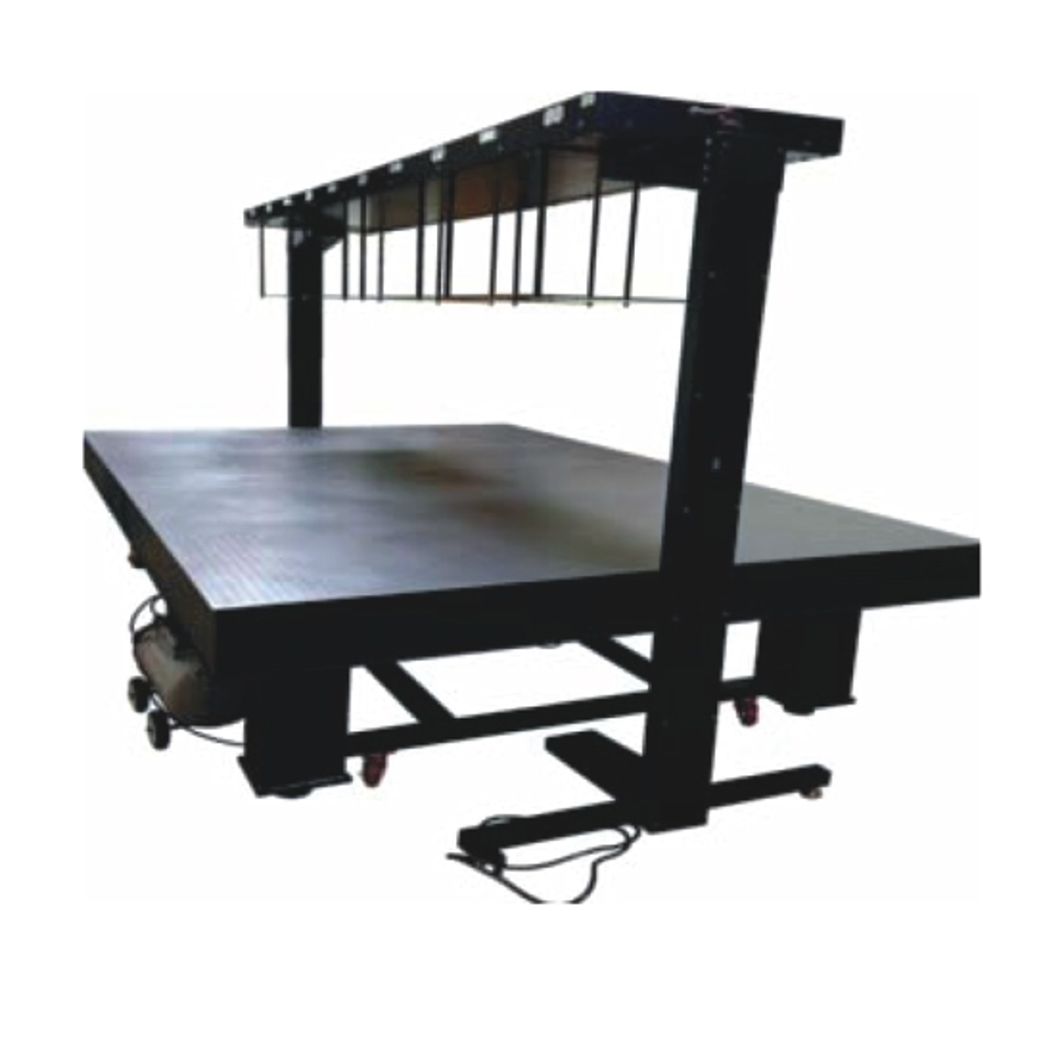

Overhead TableShelf System

Model	Length(mm)	Shelf Plate	Electric Outlet(220V/110V)
KOS-14	1400	1	4ea
KOS-20	2000	2	6ea
KOS-38	3800	6	12ea

Optical top / breadboard	Thickness: 30/50/100/200/300/400t Flatness : ±0.1mm Over 1000㎟ Area Core : Tin Plate Honeycomb
Mounting Hole	Metric : M6-25mm grid, 12.5mm border English : 1/4 "-1 " grid, 1.5 " border
Hole / Core Sealing	Clean Cylindrical cup
