New Products
PSD60-2R AC 연료용량 테스트 세트

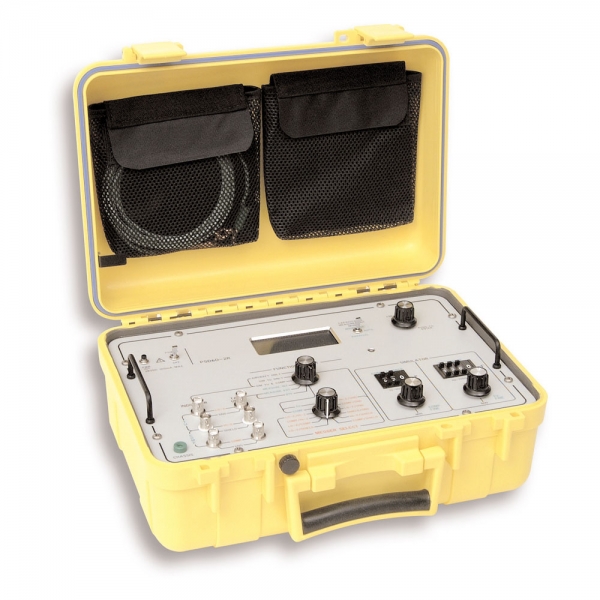

The PSD60-2R Fuel Quantity Test Set is an accurate, stable unit designed to test AC capacitance type fuel quantity measurement systems and their line replaceable components. The PSD60-2R, along with aircraft-specific interface units or cables*, provides complete capability to test most aircraft with AC capacitance systems.
The PSD60-2R performs these functions
- Measurement of total tank capacitance, individual tank units and compensators
- Simulation of capacitance for indicator calibration
- Simulation of compensator capacitance value for dry calibration
- Measurement of the insulation resistance of tank units and aircraft harness
- Measurement of coax center conductor to shield for fault isolation
- Display of capacitance resolution to 0.00 pF for accurate individual tank unit test¬ing (to 199.99 pF)
주요특징
- Compatible with AD 98-20-40 & AD 99-03-04 compliant aircraft (Mod 6 and above)
- Modular design for high reliability and low maintenance
- Closed box calibration using front panel controls - performed annually
- Battery powered with percent of charge displayed
- Maintenance codes displayed to aid in troubleshooting
- Distance-to-Fault (DTF) Mode determines the "length" of the wire or the approximate distance to a break in the wire or shield
- Large selection of aircraft specific interface cables readily available
Literature
| 제목 | 발행일 | 다운받기 |
|---|---|---|
| PSD60-2R Fuel Quantity Test Set Data Sheet | 08-30-2016 | 다운로드 |
| Legacy Product Roadmap of Discontinued Avionics Products | 05-06-2015 | 다운로드 |
