New Products
)
)
)
)

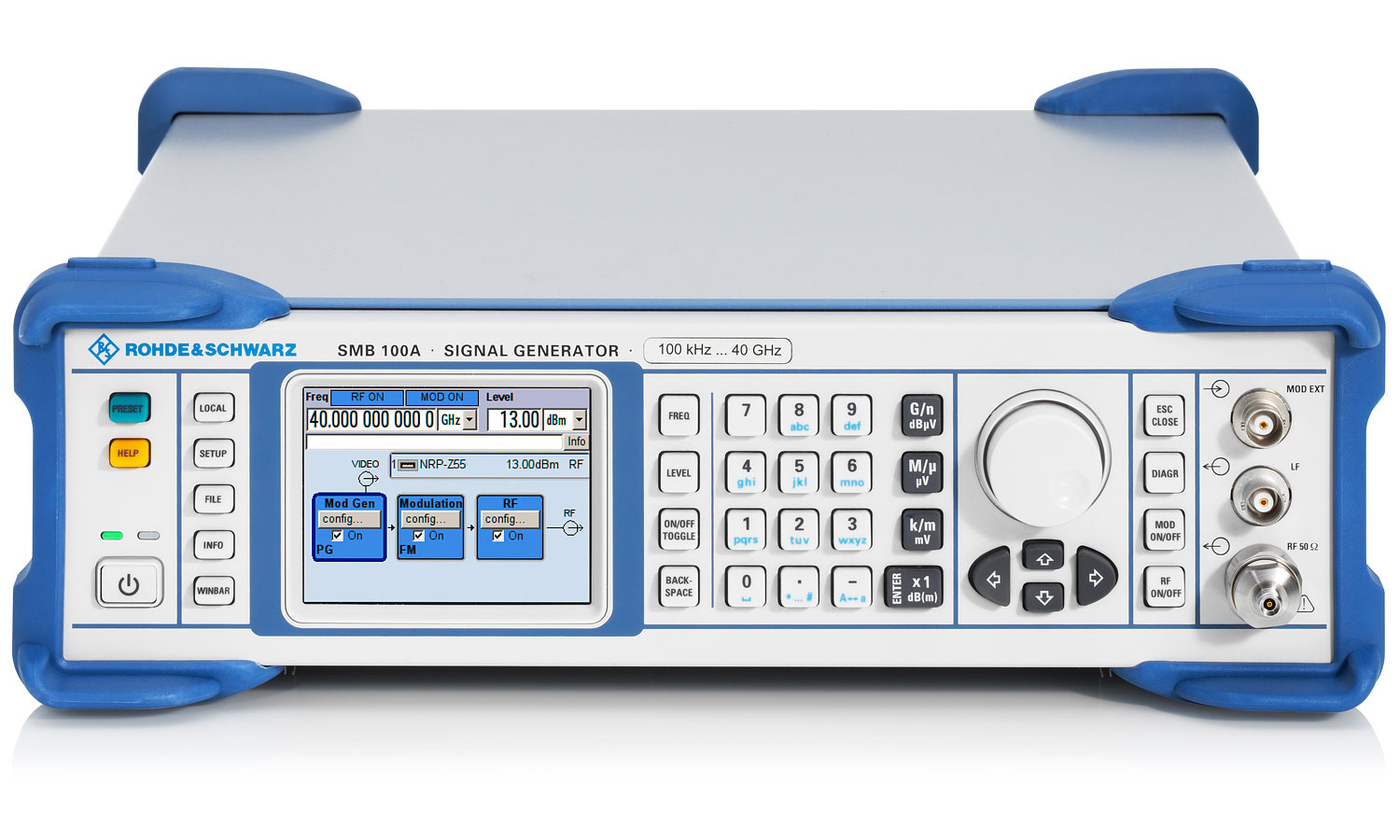

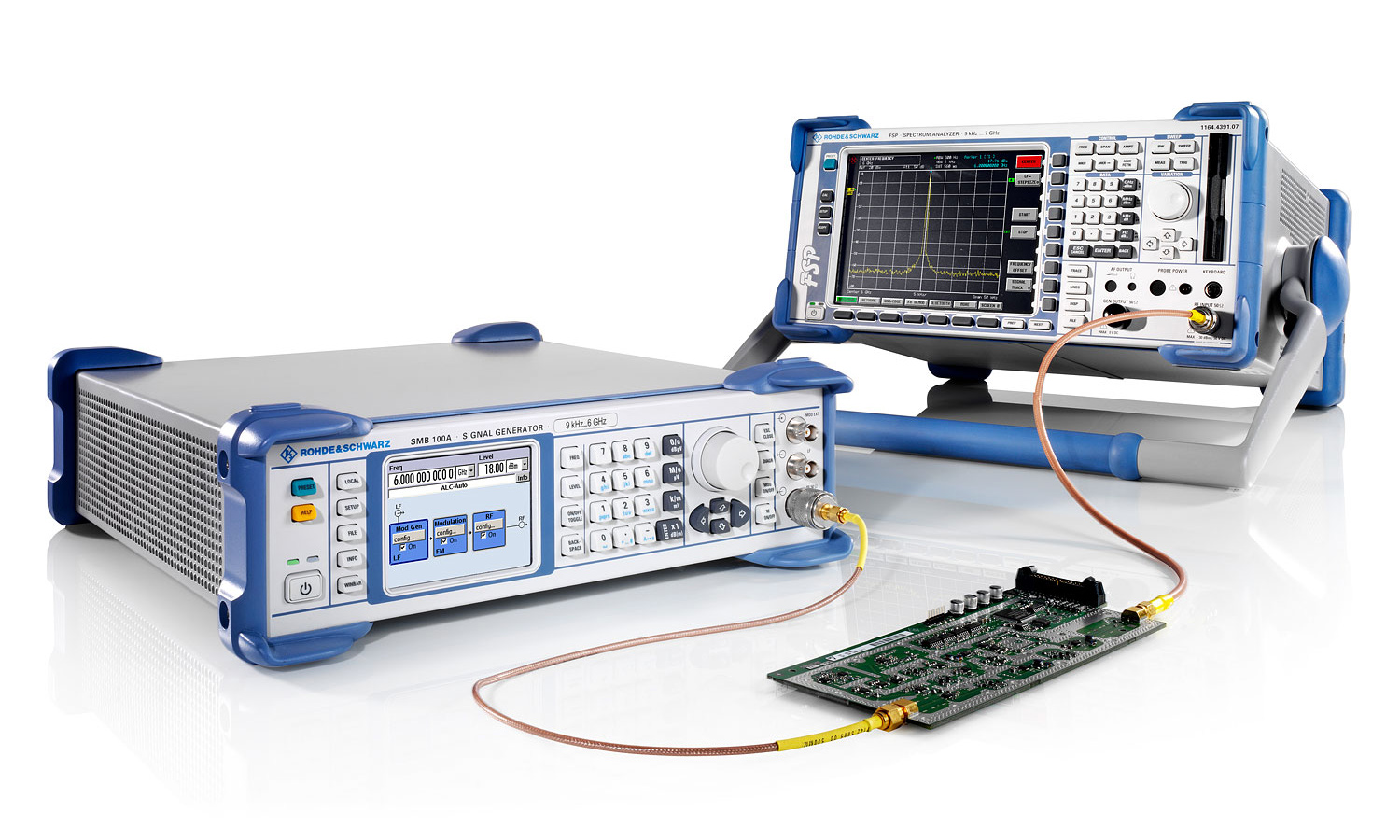

R&S의 SMB100A는 최대 40 GHz의 주파수 범위, 뛰어난 스펙트럼 순도와 높은 출력을 나타내며, 컴팩트하게 디자인된 RF 및 마이크로웨이브 신호 발생기입니다. 또한, 포괄적인 기능을 갖추고도 작동이 쉽고 간편하다는 특징이 있습니다.
더 높은 주파수가 필요할 경우, R&S의 SMZ 주파수 배율로 SMB100A의 주파수 범위를 쉽게 확장할 수 있습니다.
R&S의 SMB100A 및 SMZ 솔루션은 50 GHz ~ 110 GHz의 주파수 범위에서 정밀하고 조정 가능한 출력 레벨을 쉽게 처리할 수 있습니다.
주요특징
- 9 kHz ~ 6 GHz 또는 100 kHz ~ 40 GHz의 넓은 주파수 범위
- 저 SSB 위상 잡음의 탁월한 신호 특성: -128 dBc (1 GHz에서, 오프셋 20 kHz에서)
- 고출력 파워: 최대 +27dBm
- AM, FM/φM 및 펄스 변조를 지원하는 모든 중요한 아날로그 변조
- 높위를 두 단위로 낮추고 와 무게를 가볍게 한 컴팩트한 디자인
R&S SMB100A RF 및 마이크로웨이브 신호 발생기 스펙
| Frequency | ||
| Frequency range | R&S®SMB-B101 | 9 kHz to 1.1 GHz |
| R&S®SMB-B102 | 9 kHz to 2.2 GHz | |
| R&S®SMB-B103 | 9 kHz to 3.2 GHz | |
| R&S®SMB-B106 | 9 kHz to 6 GHz | |
| R&S®SMB-B112/R&S®SMB-B112L | 100 kHz to 12.75 GHz | |
| R&S®SMB-B120/R&S®SMB-B120L | 100 kHz to 20 GHz | |
| R&S®SMB-B131 | 100 kHz to 31.8 GHz | |
| R&S®SMB-B140/R&S®SMB-B140L/R&S®SMB-B140N | 100 kHz to 40 GHz | |
| Setting time | SCPI mode | < 3 ms |
| List mode | < 1 ms | |
| Level | ||
| Maximum output power | R&S®SMB-B101/-B102/-B103/ R&S®SMB-B106/-B112/-B112L, 1 MHz < f ≤ 12.75 GHz |
+18 dBm |
| R&S®SMB-B120 with R&S®SMB-B31, 50 MHz < f ≤ 20 GHz |
+16 dBm | |
| R&S®SMB-B120L with R&S®SMB-B31, 100 MHz < f ≤ 20 GHz |
+19 dBm | |
| R&S®SMB-B131/-B140/-B140N with R&S®SMB-B32, 50 MHz < f ≤ 40 GHz |
+19 dBm | |
| R&S®SMB-B140L with R&S®SMB-B32, 50 MHz < f ≤ 40 GHz |
+16 dBm | |
| Minimum specified output power | R&S®SMB--B101/-B102/-B103/-B106/-B112/-B12/-B131/-B140/-B140N | -120 dBm |
| R&S®SMB-B112L | -5 dBm | |
| R&S®SMB-B120L/-B140L | 0 dBm | |
| Setting time (without switching of the mechanical attenuator) |
SCPI mode | < 2.5 ms |
| List mode | < 1 ms | |
| Spectral purity | ||
| SSB phase noise | f = 1 GHz, carrier offset = 20 kHz, 1 Hz measurement bandwidth |
< –122 dBc, typ. –128 dBc |
| f = 10 GHz, carrier offset = 20 kHz, 1 Hz measurement bandwidth |
< –102 dBc, typ. –108 dBc |
|
| Harmonics | ||
| R&S®SMB-B101/-B102/-B103/ R&S®SMB-B106/-B112/-B112L | 1 MHz < f ≤ 6 GHz; level ≤ 13 dBm 1), f > 6 GHz; level ≤ 10 dBm 1) |
< –30 dBc |
| R&S®SMB-B120/-B120L/-B131/-B140/ -B140N/-B140L | standard; level ≤ 8 dBm 1) | |
| f > 1 MHz | < –30 dBc | |
| with R&S®SMB-B25/-B26 low harmonic option, low harmonic filter on, level ≤ 10 dBm 1) | ||
| 1 MHz < f ≤ 150 MHz | < –30 dBc | |
| 150 MHz < f ≤ 3 GHz | < –58 dBc | |
| 3 GHz < f ≤ 20 GHz | < –50 dBc | |
| f > 20 GHz | < –60 dBc (meas.) | |
| Supported modulation modes | ||
| AM | standard | |
| AM depth | 0 % to 100 % | |
| FM/φM | standard | |
| Maximum FM deviation | f = 10 GHz | 32 MHz |
| Maximum φM deviation | f = 10 GHz | 320 rad |
| Pulse | R&S®SMB-K21/-K22 pulse modulator | |
| Rise/fall time | < 20 ns, typ. < 5 ns | |
| ON/Off ratio | > 80 dB | |
| Minimum pulse width of pulse generator output |
10 ns | |
| Connectivity | ||

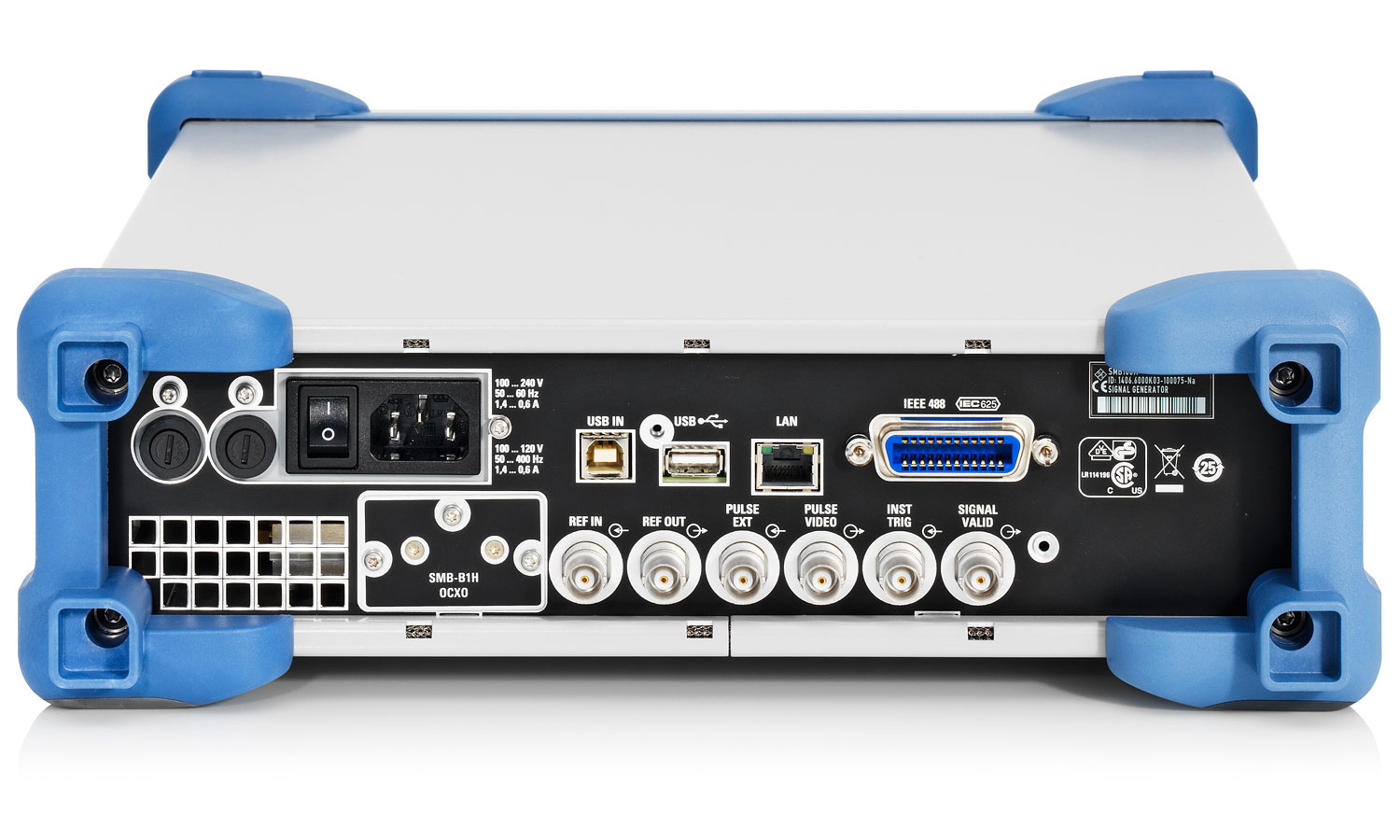

| Remote control | GPIB IEEE-488.2 Ethernet (TCP/IP), USB |
|
| Peripherals | USB | |
R&S SMB100A RF 및 마이크로웨이브 신호 발생기 옵션정보
| 옵션 모델 | 설명 | |
| 옵션 | SMB-B101 | RF Path 9 kHz to 1.1 GHz |
| SMB-B102 | RF Path 9 kHz to 2.2 GHz | |
| SMB-B103 | RF Path 9 kHz to 3.2 GHz | |
| SMB-B106 | RF Path 9 kHz to 6 GHz | |
| SMB-B112 | RF Path 100 kHz to 12.75 GHz with electronic step attenuator | |
| SMB-B112L | RF Path 100 kHz to 12.75 GHz without step attenuator | |
| SMB-B120 | RF Path 100 kHz to 20 GHz, with mechanical step attenuator | |
| SMB-B120L | RF Path 100 kHz to 20 GHz, without step attenuator | |
| SMB-B131 | RF Path 100 kHz to 31.8 GHz, with mechanical step attenuator | |
| SMB-B140 | RF Path 100 kHz to 40 GHz, with mechanical step attenuator | |
| SMB-B140L | RF Path 100 kHz to 40 GHz, without step attenuator | |
| SMB-B140N | RF Path 100 kHz to 40 GHz, with mechanical step attenuator, min.pulse width limited | |
| SMB-B1 | OCXO Reference Oscillator | |
| SMB-B1H | OCXO Reference Oscillator, high performance (one of the SMB-B1 or SMB-B1H opt.) |
|
| SMB-B5 | Stereo/RDS Coder (available with an SMB-B101/102/103/106 freq. opt.) |
|
| SMB-B25 | Harmonic Filter Opt., 150 MHz to 20 GHz (only available with SMB-B120, SMB-B120L) |
|
| SMB-B26 | Harmonic Filter Opt., 150 MHz to 40 GHz (available w/SMB-B131/-B140/-B140N/-B140L) |
|
| SMB-B30 | Reverse Power Protection, 100 kHz to 12.75 GHz (available w/ SMB-B112 or SMB-112L freq.) |
|
| SMB-B31 | High Power Option, 50 MHz to 20 GHz (available with SMB-B120/-B120L) |
|
| SMB-B32 | High Power Option, 50 MHz to 40 GHz (available w/SMB-B131/-B140/-B140N/-B140L) |
|
| SMB-K21 | Pulse Modulator (for SMB-B112/-B112L/-B120/-B120L/-B141/-B140/-B140N/-B140L) |
|
| SMB-K22 | Pulse Modulator (for SMB-B101/-B102/-B103/-B106) |
|
| SMB-K23 | Pulse Generator | |
| SMB-K27 | Pulse Train (Req. SMB-K23 opt., only available for instruments with serial >102400) |
|
| 추천 옵션 | ZZA-S234 | 19" Rack Adapter (mounting a 3/4 19" housing 2 RU high) |
| NRP-Z92 | Average Power Sensor (-57 dBm to +33 dBm, 9 kHz to 6 GHz, N Type) |
|
| NRP-Z55 | Thermal Power Sensor model .03 (-35 dBm to +20 dBm, DC to 40 GHz, 2.92 mm) |
|
| NRP-Z55 | Thermal Power Sensor model .04 (-35 dBm to +20 dBm, DC to 44 GHz, 2.92mm) |
|
| NRP-Z22 | Three-Path Diode Power Sensors (-57 dBm to +33 dBm, 10 MHz to 18 GHz, N type) |
|
| NRP-Z4 | USB Adapter (passive) | |
| 1021.0512.00 | Test port adapter, PC 3.5 mm female (SMB-B112/-B112L/-B120 or SMB-B120L freq. opt.) |
|
| 1021.0529.00 | Test port adapter, PC 3.5 mm male (SMB-B112/-B112L/-B120 or SMB-B120L freq. opt.) |
|
| 1021.0535.00 | Test port adapter, N female (SMB-B112/-B112L/-B120 or SMB-B120L freq. opt.) |
|
| 1021.0541.00 | Test port adapter, N male (SMB-B112/-B112L/-B120 or SMB-B120L freq. opt.) |
|
| 1088.1627.02 | Test port adapter, 2.4 mm female (SMB-B131/-B140/-B140N/-B140L freq. opt.) |
|
| 1036.4790.00 | Test port adapter, 2.92 mm female (SMB-B131/-B140/-B140N/-B140L freq. opt.) |
|
| 1036.4802.00 | Test port adapter, 2.92 male (SMB-B131/-B140/-B140N/-B140L freq. opt.) |
|
| 1036.4777.00 | Test port adapter, N female (SMB-B131/-B140/-B140N/-B140L freq. opt.) |
|
| 1036.4783.00 | Test port adapter, N male (SMB-B131/-B140/-B140N/-B140L freq. opt.) |
|
| 주파수 멀티플라이어 | SMZ110 | Frequency Multiplier, 75 GHz to 110 GHz |
| SMZ170 | Frequency Multiplier, 110 GHz to 170 GHz | |
| SMZ-B75M | Mechanically Controlled Attenuator for the SMZ75 | |
| SMZ-B75E | Electronically Controlled Attenuator for the SMZ75 | |
| SMZ-B90M | Mechanically Controlled Attenuator for the SMZ90 | |
| SMZ-B90E | Electronically Controlled Attenuator for the SMZ90 | |
| SMZ-B110M | Mechanically Controlled Attenuator for the SMZ110 | |
| SMZ-B110E | Electronically Controlled Attenuator for the SMZ110 |
