Up to three channels in a single instrument
The R&S®HMP DC Power supplies are primarily designed for industrial use. With three or four output channels and up to 10 A output current per channel, these rugged instruments are ideal for a wide variety of applications. They offer high efficiency with low residual ripple and many protection functions.
모델
| 모델명 | 출력 채널 수 | 최대 출력 파워 | 채널 당 출력 전압 | 채널 당 출력 전류 |
| R&S®HMP4030 | 3 | 384 W | 0 V to 32 V | 10 A |

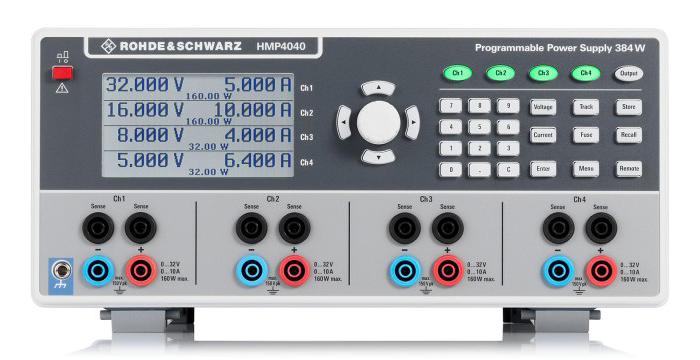

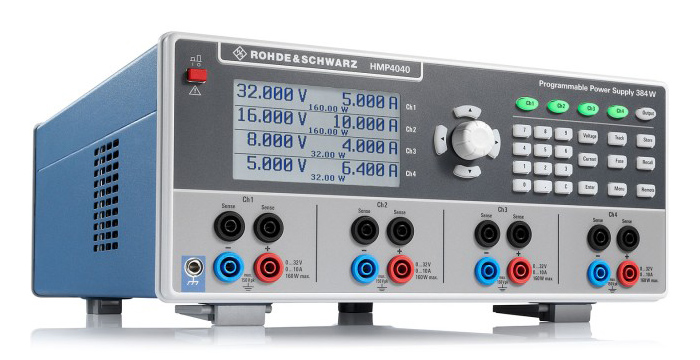

| R&S®HMP4040 | 4 | 384 W | 0 V to 32 V | 10 A |
주요특징
- 3 or 4 channels with max. 384 W total output power
- Maximum output current per channel: 10A
- Maximum output power per channel: 160W
- Maximum output voltage of 32 V per channel; higher voltages possible in serial operation
- Electronic fuse (OCP), adjustable maximum voltage (OVP), overtemperature protection (OTP)
More than meets your daily needs
- All channels galvanically isolated and floating
- All channels have the same voltage range
- All channels have overload and short-circuit protection
- Parallel and serial operation
- Constant voltage and constant current modes
- Tracking and link functions
- Protection functions to safeguard instrument and DUT
- Modern instrument concept: small, compact and quiet
Easy operation
- Intuitive to use
- Color coding of operating states
- EasyArb function for all channels
- Save and recall instrument settings
Ideal for labs and test systems
- Tailored for use in labs and system racks
- Sense function for more stringent accuracy requirements

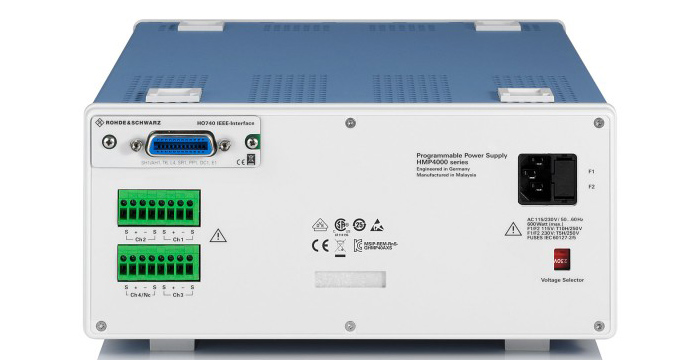

- Connections on front and rear panels
- Remote control of instrument functions
주요 스펙
| Electrical specifications | ||
| Number of output channels | 3/4 | |
| Total output power | max. 384 W | |
| Maximum output power per channel | 160 W | |
| Output voltage per channel | 0 V to 32 V | |
| Maximum output current per channel | 10 A | |
| Voltage ripple and noise (20 Hz to 20 MHz) | < 1.5 mV (RMS) (meas.) | |
| Current ripple and noise (20 Hz to 20 MHz) | < 1 mA (RMS) (meas.) | |
| Load recovery time*1) | < 1 ms (meas.) | |
| Programming/readback resolution | Voltage | 1 mV |
| Current | < 1 A: 0.2 mA; ≥ 1 A: 1 mA | |
| Readback accuracy (± (% of output + offset)) | Voltage | < 0.05% + 5 mV |
| Current | < 0.1% + 2 mA | |
| Special functions | ||
| Measurement functions | voltage, current | |
| Protection functions | OVP, OCP, OTP | |
| FuseLink function | ● | |
| Fuse delay at power-up | ● | |
| Sense function | ● | |
| Sink mode | – | |
| Output sequencing | – | |
| Trigger input/output | – | |
| Arbitrary function | ● (EasyArb) | |
| Analog/modulation interface | – | |
| Data logging | – | |
| Display and interfaces | ||
| Display | 240 × 128 pixel LCD | |
| Rear panel connections | connector block with 4 lines per channel | |
| Remote control interfaces | standard: USB, LAN; optional: IEEE-488 (GPIB), RS-232 | |
| General data | ||
| Dimensions (W × H × D) | 285 × 136 × 405 mm | |
| Weight | 12.4 kg/12.8 kg | |
| Rack installation | R&S®HZP91 option | |
| *1) 10% to 90% load change within a band of ± 20 mV of set voltage. | ||
