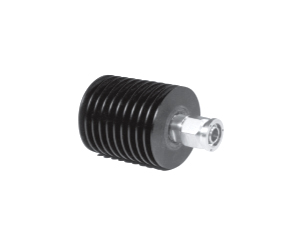

미디엄 파워 터미네이션 (30 와트)

Power	6 to 30 Watts
Connectors	BNC, N, SMA, TNC, 7/16
Frequency range	DC to 18 GHz

7/16 - 50 OHMS

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Impedance (Ω)	Gender	Part Number
			Avg. (W)	Peak (W)
2	1.2	20.8	25	5,000	50±5%	Male	R404 836 118
4	1.2	20.8	12	4,000	50±5%	Male	R404 564 000

BNC - 50 OHMS

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Impedance (Ω)	Gender	Part Number
			Avg. (W)	Peak (W)
2	1.1	26.4	6	4,000	50±5%	Male	R404 505 000
2	1.1	26.4	12	4,000	50±5%	male	R404 555 000
8	1.25	19.1	6	4,000	50±5%	male	R404 510 000
8	1.25	19.1	12	4,000	50±5%	male	R404 560 000

N - 50 OHMS

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Impedance (Ω)	Gender	Part Number
			Avg. (W)	Peak (W)
2	1.1	26.4	6	4,000	50±5%	Male	R404 507 000
2	1.1	26.4	12	4,000	50±5%	Male	R404 557 000
6	1.3	17.7	30	2,000	50±5%	Male	R404 750 000
6	1.3	17.7	30	2,000	50±5%	Female	R404 751 000
12.4	1.3	17.7	6	4,000	50±5%	Male	R404 517 000
12.4	1.3	17.7	12	4,000	50±5%	Male	R404 567 000
12.4	1.25	19.1	20	300	50±5%	Male	R404 587 000
12.4	1.25	19.1	20	300	50±5%	Female	R404 587 500
18	1.3	17.7	6	300	50±5%	Male	R404 522 000
18	1.3	17.7	12	300	50±5%	Male	R404 572 000
18	1.35	16.5	20	300	50±5%	Male	R404 588 000
18	1.35	16.5	20	300	50±5%	Female	R404 588 500

SMA - 50 OHMS

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Impedance (Ω)	Gender	Part Number
			Avg. (W)	Peak (W)
6	1.3	17.7	30	2,000	50±5%	Male	R404 754 000
6	1.3	17.7	30	2,000	50±5%	Female	R404 755 000
12.4	1.3	17.7	6	4,000	50±5%	Male	R404 518 000
12.4	1.3	17.7	12	4,000	50±5%	Male	R404 568 000
12.4	1.25	19.1	20	300	50±5%	Male	R404 584 000
12.4	1.25	19.1	20	300	50±5%	Female	R404 584 500
18	1.3	17.7	6	300	50±5%	Male	R404 523 000
18	1.3	17.7	12	300	50±5%	Male	R404 573 000
18	1.35	16.5	20	300	50±5%	Male	R404 589 000
18	1.35	16.5	20	300	50±5%	Female	R404 589 500

TNC - 50 OHMS

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Impedance (Ω)	Gender	Part Number
			Avg. (W)	Peak (W)
2	1.1	26.4	6	4,000	50±5%	Male	R404 506 000
2	1.1	26.4	12	4,000	50±5%	Male	R404 556 000
6	1.3	17.7	30	2,000	50±5%	Male	R404 752 000
6	1.3	17.7	30	2,000	50±5%	Female	R404 753 000
12.4	1.3	17.7	6	4,000	50±5%	Male	R404 516 000
12.4	1.3	17.7	12	4,000	50±5%	Male	R404 566 000
12.4	1.25	19.1	20	300	50±5%	Male	R404 585 000
12.4	1.25	19.1	20	300	50±5%	Female	R404 585 500
18	1.3	17.7	12	300	50±5%	Male	R404 571 000
18	1.35	16.5	20	300	50±5%	Male	R404 586 000
18	1.35	16.5	20	300	50±5%	Memale	R404 586 500
