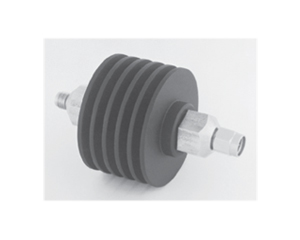

미디엄 파워 어테뉴에이터 (30 와트)

Power	3 to 50 Watts
Connectors	BNC, N, SMA, TNC, 7/16
Frequency range	DC to 18 GHz
Attenuation range	0 to 30 dB

7/16 - 50 OHMS, MALE TO FEMALE

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Nom. Attenuation (dB)	Max dev.	Part Number
			Avg. (W)	Peak (W)
4	1.35	16.5	25	5,000	xx	± 0.6 (1)	R4203xx110
Available attenuation value: xx = 03, 06, 10 and 20 dB

(1) ± 0.6 for xx = 20

BNC - 50 OHMS, MALE TO FEMALE

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Nom. Attenuation (dB)	Max dev.	Part Number
			Avg. (W)	Peak (W)
4	1.3	17.7	15 (2)	250	xx	± 0.5	R4154xx000
Available attenuation value: xx = 03, 06, 10 and 20 dB

(2) 12 for xx= 06 , 10 for xx = 10 and 20

N - 50 OHMS, MALE TO FEMALE

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Nom. Attenuation (dB)	Max dev.	Part Number
			Avg. (W)	Peak (W)
4	1.35	16.5	25	5,000	xx	± 0.6 (1)	R417 3xx 110
Available attenuation value: xx = 03, 06, 10, 20 and 30 dB
4	1.35	16.5	30	5,000	xx	± 0.6 (1)	R417 3xx 130
Available attenuation value: xx = 03, 06, 10, 20 and 30 dB
8	1.25	19.1	15 (2)	250	xx	± 0.3	R415 7xx 000
Available attenuation value: xx = 03, 06, 10 and 20 dB
18	1.4	15.6	15 (2)	300	xx	± 0.5	R416 0xx 000
Available attenuation value: xx = 03, 06, 10 and 20 dB

(1) up to xx = 10
(2) 12 for xx= 06 , 10 for xx = 10 and 20

SMA - 50 OHMS, MALE TO FEMALE

Frequency DC to (GHz)	VSWR max.	Return loss min. (dB)	Power rating (W)		Nom. Attenuation (dB)	Max dev.	Part Number
			Avg. (W)	Peak (W)
4	1.35	16.5	25	5,000	xx	± 0.6 (1)	R417 3xx 110
Available attenuation value: xx = 03, 06, 10, 20 and 30 dB
4	1.35	16.5	30	5,000	xx	± 0.6 (1)	R417 3xx 130
Available attenuation value: xx = 03, 06, 10, 20 and 30 dB
8	1.25	19.1	15 (2)	250	xx	± 0.3	R415 7xx 000
Available attenuation value: xx = 03, 06, 10 and 20 dB
18	1.4	15.6	15 (2)	300	xx	± 0.5	R416 0xx 000
Available attenuation value: xx = 03, 06, 10 and 20 dB

(1) up to xx = 10
(2) 12 for xx= 06 , 10 for xx = 10 and 20

TNC - 50 OHMS, MALE TO FEMALE

Frequency DC to (GHz)	VSWR max.	Return lossmin. (dB)	Power rating (W)		Nom. Attenuation (dB)	Max dev.	Part Number
			Avg. (W)	Peak (W)
4	1.35	16.5	25	5,000	xx	± 0.6 (1)	R417 5xx 110
Available attenuation value: xx = 03, 06, 10, 20 and 30 dB
4	1.35	16.5	30	5,000	xx	± 0.6 (1)	R417 5xx 130
Available attenuation value: xx = 03, 06, 10, 20 and 30 dB
8	1.25	19.1	15 (2)	250	xx	± 0.3 (1)	R415 3xx 000
Available attenuation value: xx = 03, 06, 10 and 20 dB
18	1.4	15.6	15 (2)	300	xx	± 0.5	R416 8xx 000
Available attenuation value: xx = 03, 06, 10 and 20 dB

(1) up to xx = 10
(2) 12 for xx= 06 , 10 for xx = 10 and 20
