New Products
 |
 |
|
 |
|

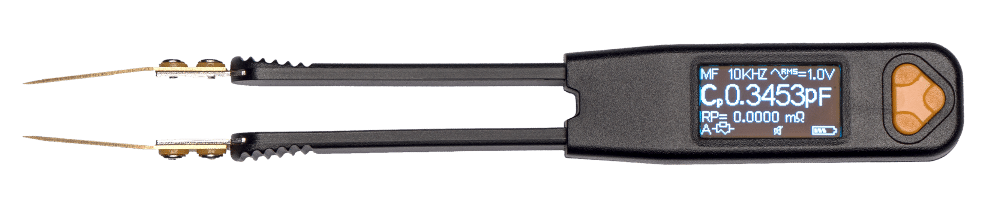

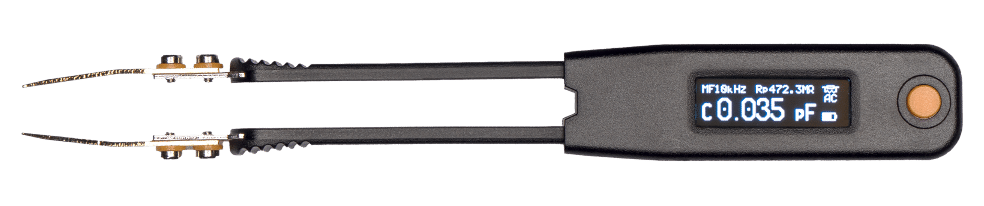

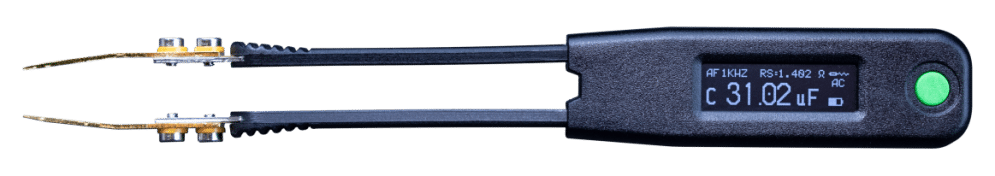

| Model | LCR Elite2 | LCR Pro1 Plus | LCR Pro1 | LCR Elite1 |
| Basic Accuracy Accuracy | R:0.2%, L:0.4%, C:0.2% | R:0.1%, L:0.2%, C:0.2% | R:0.1%, L:0.2%, C:0.2% | R:0.5%, L:1.0%, C:1.0% |
| Measurement Range | R: 20mΩ to 10MΩ
C: 0.1pF to 5mF L: 0.3uH to 1H |
R: 20mΩ to 10MΩ
C: 0.1pF to 10mF L: 10nH to 1H |
R: 20mΩ to 10MΩ
C: 0.1pF to 10mF L: 10nH to 1H |
R: 25mΩ to 10MΩ
C: 0.3pF to 500uF L: 1.0uH to 1H |
| Test Frequency | 100Hz – 10kHz | 100Hz – 100kHz | 100Hz – 100kHz | 100Hz – 10kHz |
| Test Voltage | 0.5Vrms | 0.2Vrms, 0.5Vrms, 1.0Vrms | 0.2Vrms, 0.5Vrms, 1.0Vrms | 0.45Vrms |
| Over Voltage Protection (between test tips) |  |
 |
|
|
| Resistance (R) | |
|
|
|
| Inductance (L) | |
|
|
|
| Capacitance (C) | |
|
|
|
| Impedance (Z) | |
|
|
|
| Dissipation Factor (D) | |
|
|
|
| Quality Factor (Q) | |
|
|
|
| Phase Angle (Ө) | |
|
|
|
| Equivalent Series Resistance (ESR) | |
|
|
|
| Direct Current Resistance (DCR) | |
|
|
|
| Diode Check | |
|
|
|
| LED Testing | |
|
|
|
| Continuity | |
|
|
|
| Sorting | |
|
|
|
| Recording | |
|
|
|
| Self Calibration | |
|
|
|
| PC Connectivity | |
|
|
|
| Dimensions (L x W x H) | 151 x 19 x 14.5mm | 151 x 19 x 15mm | 151 x 19 x 15mm | 151 x 19 x 14.5mm |
| Weight | 30g | 30g | 30g | 30g |
| Display | OLED 0.91″, 128 x 32 Resolution | OLED 0.96″, 128 x 64 Resolution | OLED 0.96″, 128 x 64 Resolution | OLED 0.91″, 128 x 32 Resolution |
| Battery | 3.7V LiPO, 180mAH, Rechargeable | 3.7V LiPO, 180mAH, Rechargeable | 3.7V LiPO, 150mAH, Rechargeable | 3.7V LiPO, 150mAH, Rechargeable |
| External Power Source | DC 5V, micro-B USB Connector | DC 5V, micro-B USB Connector | DC 5V, micro-B USB Connector | DC 5V, micro-B USB Connector |
| SMD Test Probe | Precise Gold Plated | Ultra-Precise Gold Plated | Ultra-Precise Gold Plated | Precise Gold Plated |
