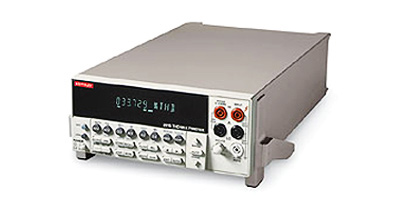

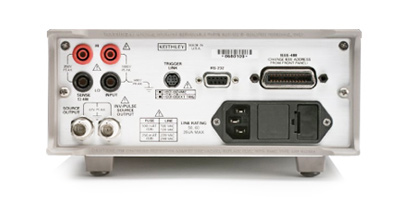

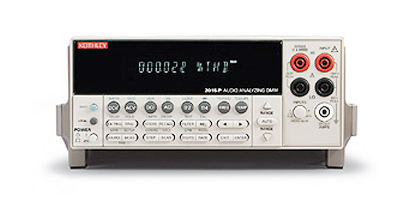

Model 2015-P 오디오 분석 기능, 6½ 디지트 DMM

  • Model 2015-P
  • Model 2015-P
  • Model 2015-P
The Models 2015-P and 2016-P Audio Analyzing Digital Multimeters and the Models 2015 and 2016 Total Harmonic Distortion Multimeters combine audio band quality measurements and analysis with a full-function 6-1/2-digit DMM. Test engineers can make a broad range of voltage, resistance, current, frequency, and distortion measurements, all with the same compact, half-rack measurement instrument. Two of the most powerful and precise audio spectrum analyzers available, the Model 2015-P and 2016-P offer additional processing capacity for frequency spectrum analysis.
Model 2015-P의 주요기능
  • THD, THD+Noise, and SINAD measurements
  • 20Hz~20kHz sine wave generator
  • Fast frequency sweeps
  • 2015-P, 2016-P: Identifies peak spectral components
  • 2015, 2015-P: 4Vrms single-ended or 8Vrms differential output
  • Individual harmonic magnitude measurements
  • 5 standard audio shaping filters
  • 13 DMM functions (6-1/2 digits)
관련 자료
데이터 시트 Models 2015-P and 2015-P-P 6-1/2 Digit THD Multimeters and Models 2016 and 2016-P 6-1/2 Digit Audio Analyzing Multimeter
Technical Information - Digital Multimeters
어플리케이션 노트 #2297 Audio Analysis Testing Using a KPCI-3108 Board with LabWindows/CVI 5.0.1
How to Program an Instrument to Assert SRQ on the GPIB Bus
