R18-0793

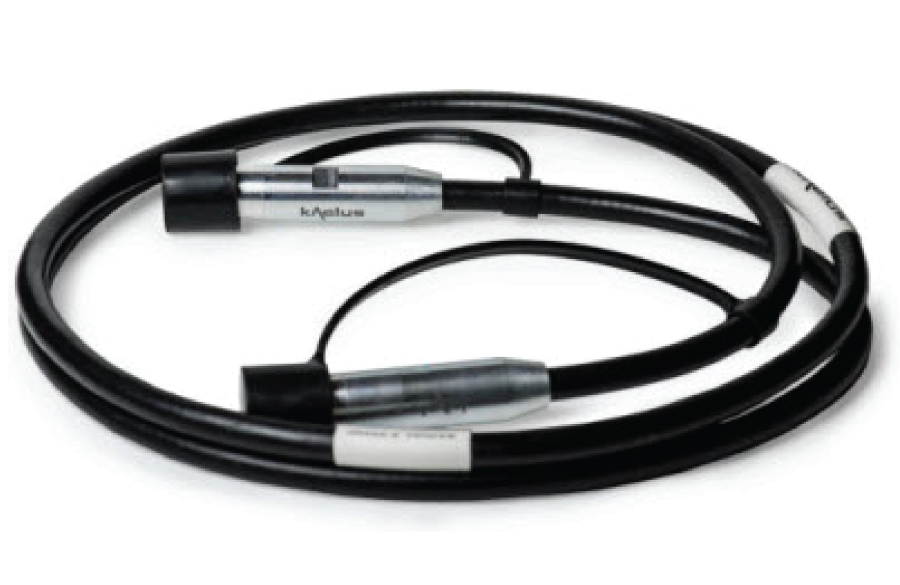

RUGGED, LOW PIM CABLE ASSEMBLY, 2.7 METERS (8'10"), DIN (M) TO DIN (M)

주요특징

기술 사양

SYSTEM

Frequency range	700MHz - 3000MHz
RF impedance	50ohms
Return loss	16dB minimum at 3GHz
Nominal PIM level	-117dBm (-160dBc) minimum
Velocity factor	0.83

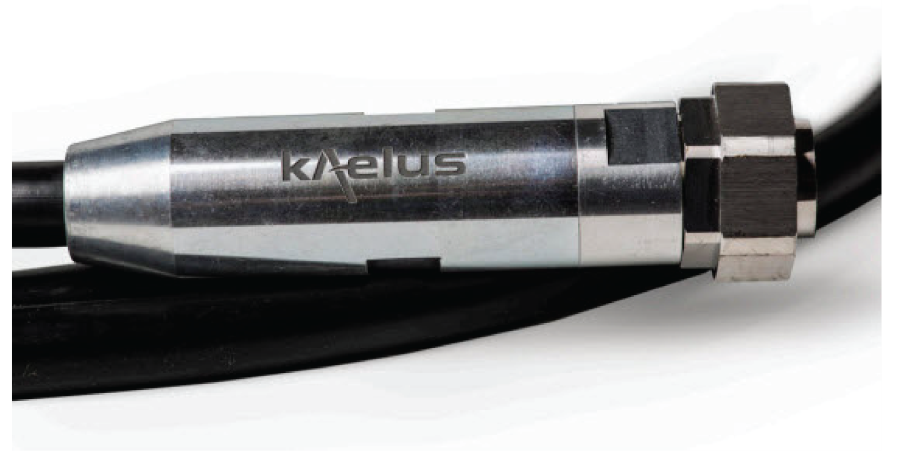

Connector	DIN (Male) to DIN (Male)
Mating life cycle	1000
Mating torque	Install slightly more than hand tight to the RF output port of the PIM Analyzer. Tightening with a 7-16 DIN torque wrench is not recommended.

MECHANICAL

Weight	0.5kg | 1.0lb
Cable length	2.7m | 8ft10in

ENVIRONMENTAL

Temperature range

-10ºC to +50ºC | +14°F to +122°F (operational)
