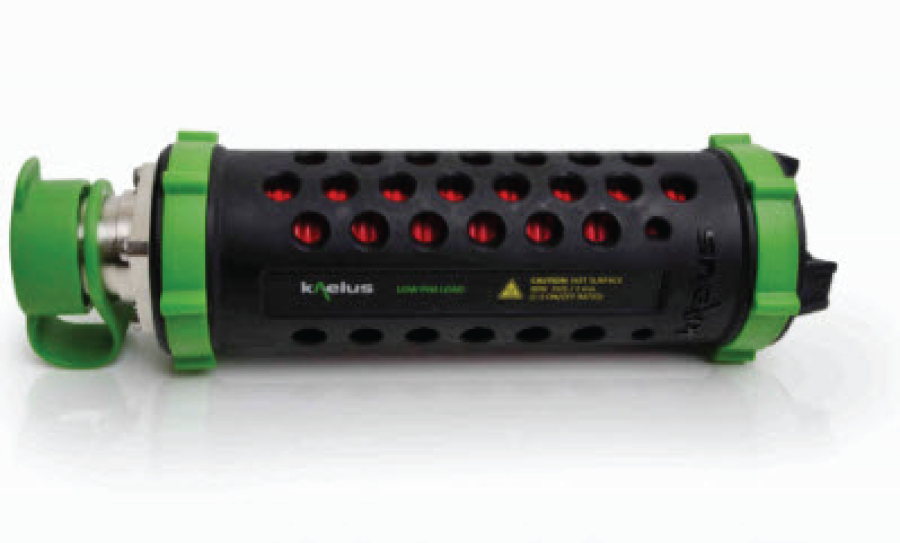

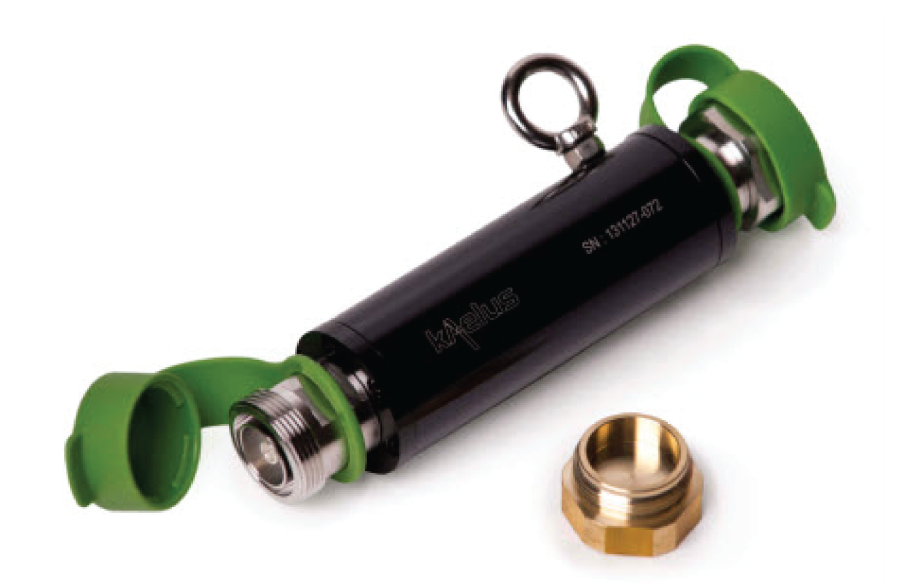

PIL-0005A
LOW PASSIVE INTERMODULATION (PIM) LOAD
주요특징
- Low Passive Intermodulation (PIM)
- Dual gender 7-16 DIN
- Consistent PIM level over wide frequency range
- Used for accurate PIM measurement
- Rugged and light weight design
- Reversible End Cap for personal protection
- Dust covers for prolonged life
- Coupling ring for lanyard attachment
기술 사양
SYSTEM
| * CAUTION : The Kaelus PIL-0005A absorbs high level RF signals and may become hot during normal operation. The PIL-0005A will fail and the warranty will be void if operated beyond the RF Power Rating listed above. The RF power rating of the load for continuous use is 10W. | |
| Frequency range | 690MHz - 2800MHz |
| RF impedance | 50ohms |
| Return loss | 16dB minimum |
| Passive intermodulation | ＜-117dBm (2 x 43dBm carriers) |
| RF power rating | 10W average |
| Connector | Dual Gender 7-16 DIN Female and 7-16 DIN Male |
| Mating torque | 25 Nm with wrench supporting connector flange |
MECHANICAL
| Weight | 0.6kg | 1.3lbs |
| Dimensions (L x D) | 180 x 40mm | 7.1 x 1.6in |
ENVIRONMENTAL
| Temperature range | -10ºC to +50ºC | +14°F to +122°F (operational) |
문서 자료
| 제목 | 다운받기 |
|---|---|
| PIL-0005A 데이터시트 | 다운로드 |
