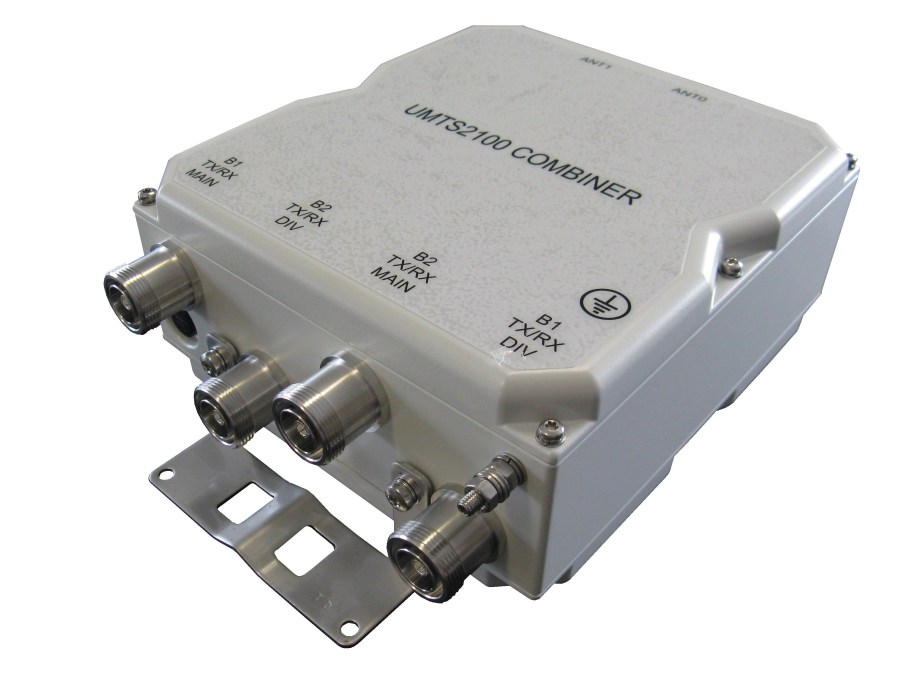

TWIN SAME BAND COMBINER 2100

주요특징

기술 사양

PORT NAME

B-1 TX/RX

B-2 TX/RX

DOWNLINK

Passband	2140 - 2150MHz	2160 - 2170MHz
Insertion loss	0.7dB maximum band edge
Return loss	18dB minimum
EVM	1% typical, 7% maximum
Maximum input power	100W (average) / 1kW (PEP)	100W (average) / 1kW (PEP)

UPLINK

Passband	1950 - 1960MHz	1970 - 1980MHz
Insertion loss	1.5dB
Return loss	18dB minimum
EVM	1% typical, 7% maximum

ISOLATION (B1-TX/RX MAIN TO B-2 TX/RX MAIN PORT AND B2-TX/RX DIV TO B-1 TX/RX DIV PORT)

B1 TX frequency range	25dB minimum
B2 TX frequency range	25dB minimum
B1 RX frequency range	20dB minimum
B2 RX frequency range	20dB minimum

ELECTRICAL

Impedance	50Ohms
Intermodulation products	160dBc @ 2 x 43dBm (13th order)

ENVIRONMENTAL

For further details of environmental compliance, please contact Kaelus.
Temperature range	-20ºC to +60ºC | 4ºF to +140ºF
Ingress protection	IP67
Altitude	2000m | 6,500ft
Operational humidity	0 - 95% without condensation (0.06 litre maximum of water per litre of dry Air)

MECHANICAL

Dimensions H x D x W	217 x 239 x 110mm | 8.54 x 9.4 x 4.33in (excluding connectors and brackets)
Weight	7.5kg | 16.5lbs maximum
Connectors	DIN 7-16 (F) x 6 long shank
Mounting	Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles

주문 정보

Part Number	Description
x denotes frequency tuning yy denotes DC/AISG options available on request (contact Kaelus for details)
DBC0036FxV1	Twin Same Band Combiner 2100 type 2, passive, twin no DC/AISG paths fitted
DBC0036FxVyy	Twin Same Band Combiner 2100 type 2, passive, twin various DC/AISG pass option available

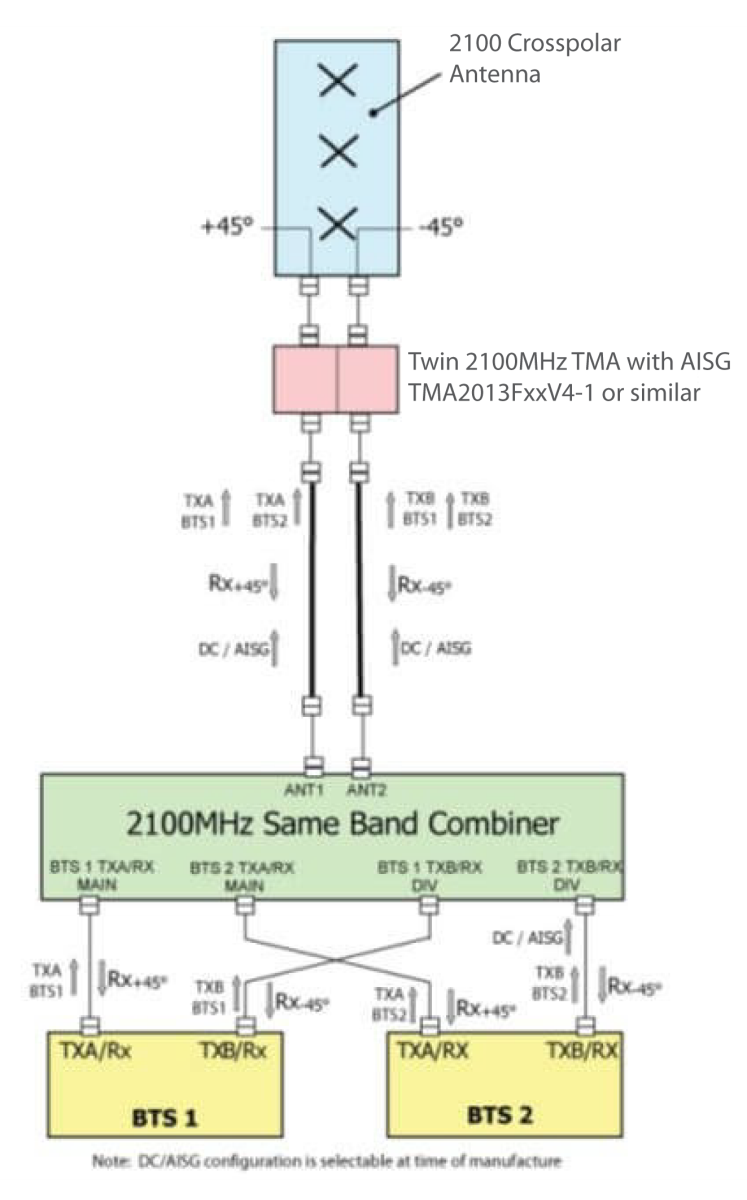

ELECTRICAL BLOCK DIAGRAM

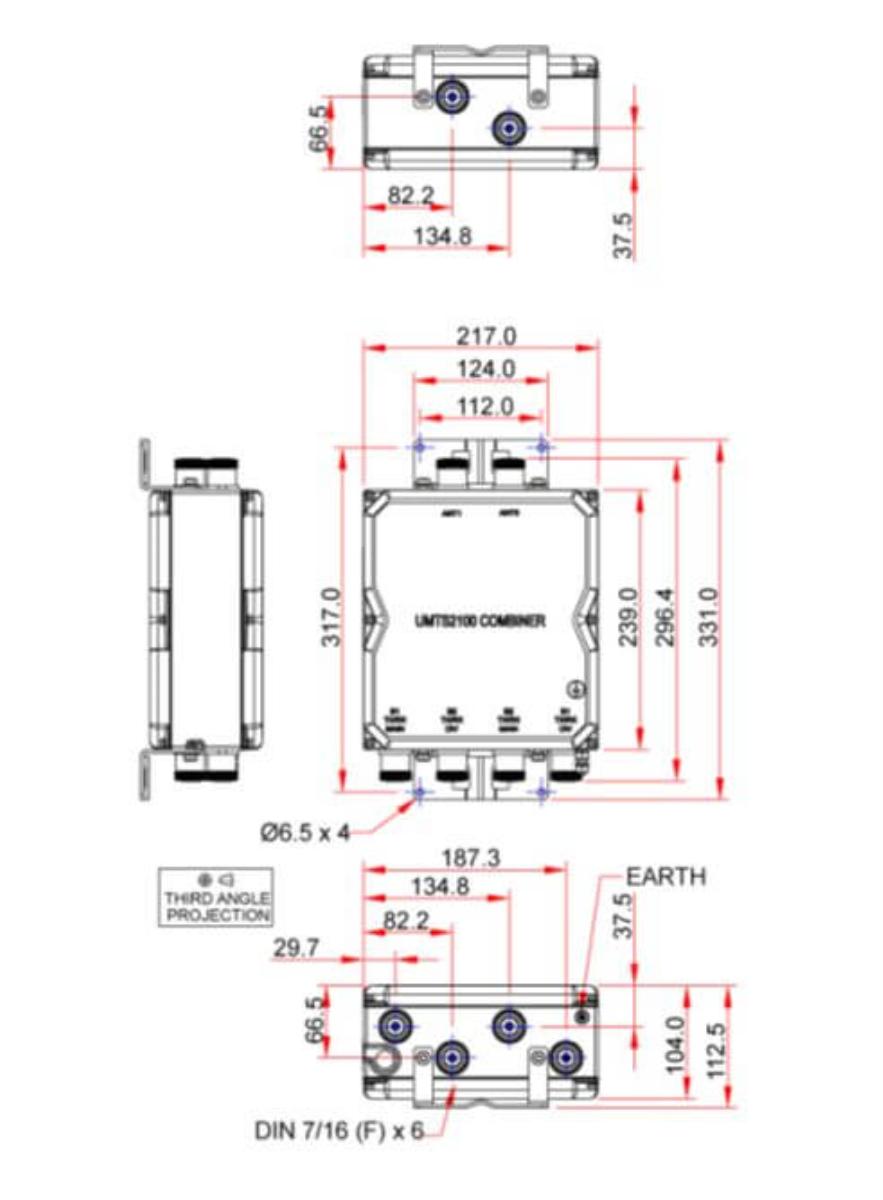

MECHANICAL BLOCK DIAGRAM

문서 자료

제목	다운받기
DBC0036F1V1-1 데이터시트	다운로드
