CIS-0001A

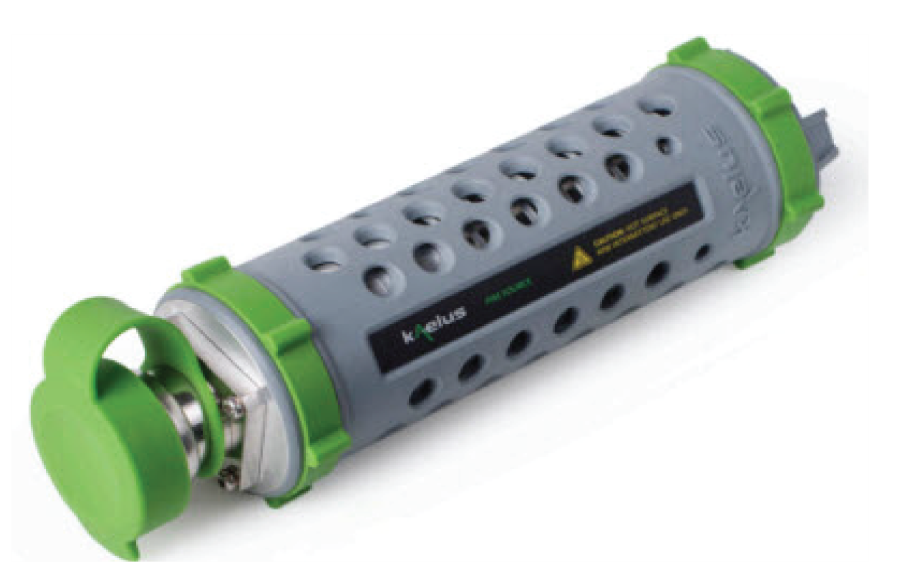

PASSIVE INTERMODULATION (PIM) SOURCE
주요특징
- Passive Intermodulation (PIM) test source
- Repeatable high PIM level over wide frequency range
- Used to verify PIM test equipment operation
- Used to calibrate Range to Fault module for PIM testing
- Rugged shock proof design
- Heat shield for personal protection
- Dust cover for prolonged life
기술 사양
SYSTEM
| * The Nominal PIM level for the CIS-0001A can vary within the range shown. The Nominal PIM level will be repeatable within ± 3dB for subsequent PIM measurements at a specific frequency. | |
| Frequency range | 500MHz - 2300MHz |
| RF impedance | 50ohms |
| Return loss | 18dB minimum |

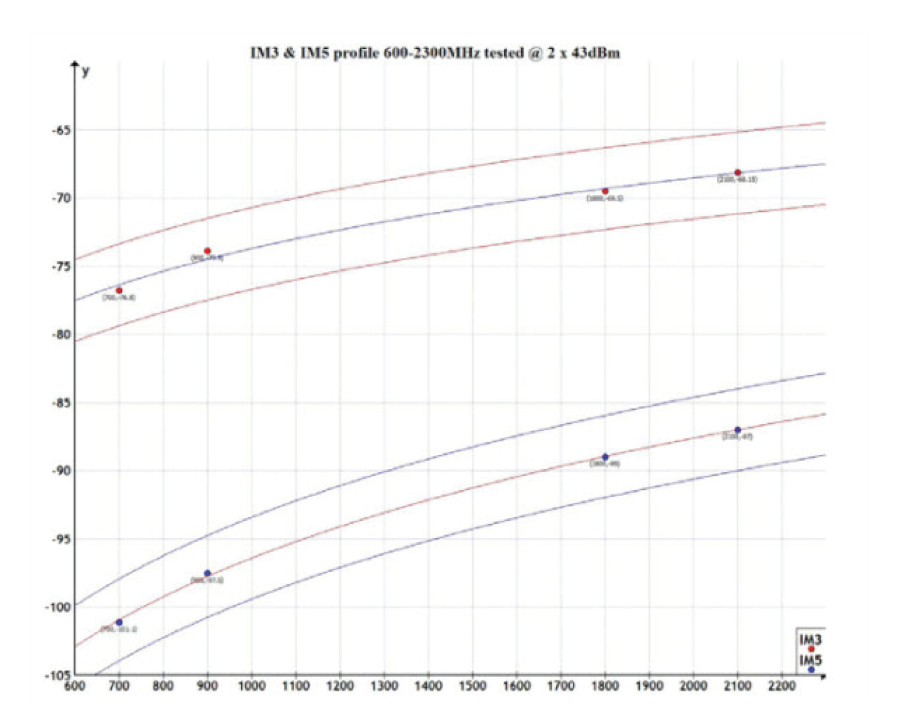

| Nominal PIM level* | As per graph |
| RF power rating | 10W, continuous | 50W, 3 mins |
| Connector | 7-16 Male |
| Mating torque | Install slightly more than hand tight to the RF output port of the PIM Analyzer. Tightening with a 7-16 DIN torque wrench is not recommended. |
MECHANICAL
| Weight | 0.5kg | 1.0lb |
| Dimensions (L x D) | 190 x 60mm | 7.48 x 2.36in |
ENVIRONMENTAL
| Temperature range | -10ºC to +50ºC | +14°F to +122°F (operational) |
문서 자료
| 제목 | 다운받기 |
|---|---|
| CIS-0001A 데이터시트 | 다운로드 |
