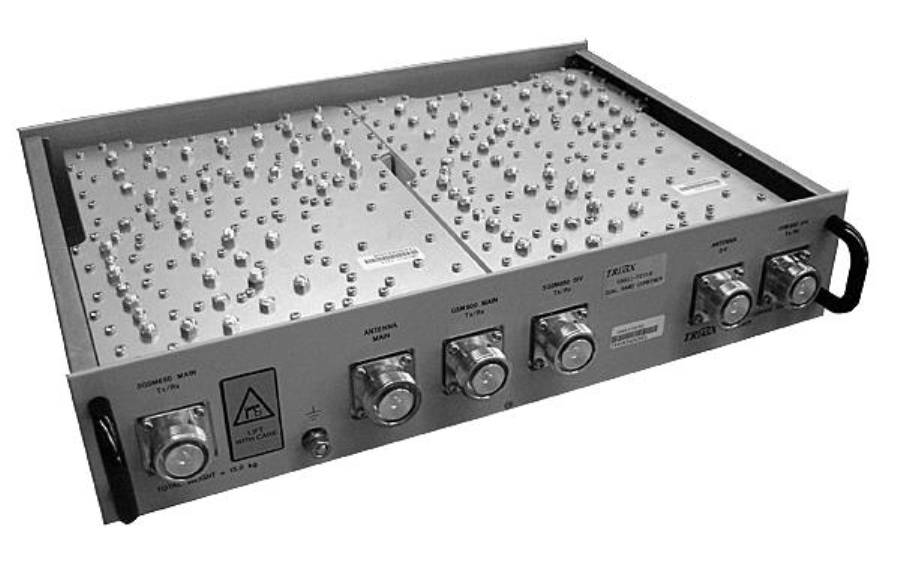

CA911F2V10

TWIN DIPLEXER 3GSM850-GSM900

Kaelus rack mounted filter assemblies provide the ability to install commonly used filter configurations into a 19" rack making installation easy and minimising rack space requirements. The CA911 combines part band 3GSM850 and part band GSM900 technologies into a single feeder in a simple twin package.

주요특징

기술 사양

PORT NAME

MAIN

DIVERSITY

Passband 3GSM850 Tx band	880.0 - 889.7MHz
Passband 3GSM850 Rx band	835 - 844.7MHz
Passband GSM Tx band	936.9 - 943.6MHz
Passband GSM Rx band	891.9 - 898.6MHz

ELECTRICAL

Impedance	50ohms
Insertion loss	2dB maximum (TX + RX band edge), 1dB typical (TX + RX mid-band) 1.2dB maximum across passband (variation)
Return loss	17dB minimum
Group delay variation	<200 ns
Maximum input power	GSM900 = 120W (average) / 500W (PEP) e.g. 4 x 30W GSM carriers 3GSM850 = 120W WCDMA (with 10dB crest factor)
Intermodulation products	<-155dBc for two tones at any frequency in either TX band at 20W CW each TX passband = <-97dBc for two tones at any frequency in either TX band at 20W CW each
Isolation – 3GSM850 to GSM900 band	40dB minimum
3GSM850 Tx error vector magnitude (main & diversity)	< 7.5% (on a carrier with centre frequency in the range 882.2 - 887.2MHz), 6% typical at 25ºC
GSM Rx group delay variation (main & diversity)	< 200 ns

ENVIRONMENTAL

For further details of environmental compliance, please contact Kaelus.
Temperature range	0ºC to +50ºC | +32ºF to +122ºF
Ingress protection	IP67

MECHANICAL

Dimensions H x D x W	440 x 306 x 72.3mm | 17.32 x 12.05 x 2.84inch
Weight	15kg | 33.1lbs
Connectors	DIN 7-16 (F) x6
Mounting	19inch rack mounting

주문 정보

Part Number	Description
CA911F2V10	Twin Diplexer 3GSM850-GSM900

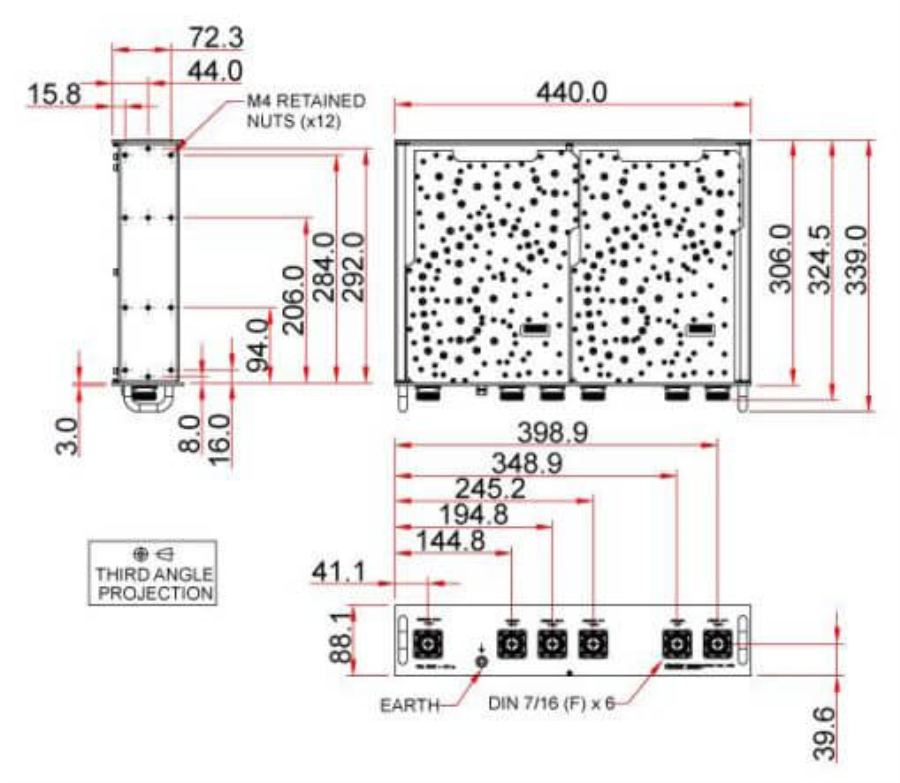

MECHANICAL BLOCK DIAGRAM
