GL200sC01

Features & Benefits

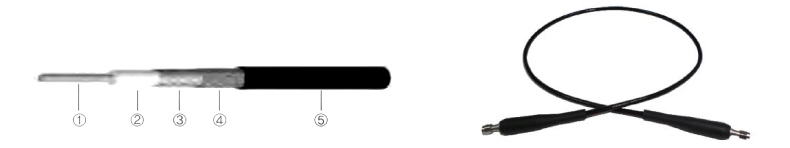

Cable Design

Description		Diameter (mm)
① Center conductor	Silver-plated copper wire, stranded	19/0.3
② Dielectric	Low density PTFE (extruded)	-
③ Inner shield	Silver-plated copper tape	-
④ Outer shield	Silver-plated copper braid	-
⑤ Jacket	PUR, Black	6.10

Electrical

Impedance	50 Ω
Operating frequency	18 GHz
Capacitance	85 pF/m
Velocity of propagation	77 % nom.
Time delay	4.35 ns/m
RF leakage (dB)	<-100
Dielectric constant	1.7
Phase stability vs. flexure (@18 GHz max.)	5°
IL stability vs. flexure (dB @minimum BR)	± 0.3
Phase stability vs. temp. (deg/GHz/m) (-40 ~ 80°)	< 2°

Mechanical & Environmental

Minimum bend radius (mm)	29.2
Weight (g/m)	70
Temperature	-40℃ to + 100℃

Suitable Connectors

Cable selection			Standard Connector selection					max. VSWR
			SMA type		N type		2.9 mm type	Connector
P/N	Frequency	Attenuation (dB/m)	Straight	R/A	Straight	R/A	Straight	ST to ST	ST to R/A	R/A to R/A
GL200sC01	18 GHz	1.19	SMS111 SMS111B	SMR111	NMS111 NFS111(Jack)	NMR111	G24SMC001	1.25	1.35	1.45
GL200sD01	26.5 GHz	1.45	SMS112 SMS112B	ㅡ	ㅡ	ㅡ	ㅡ	1.25	ㅡ	ㅡ

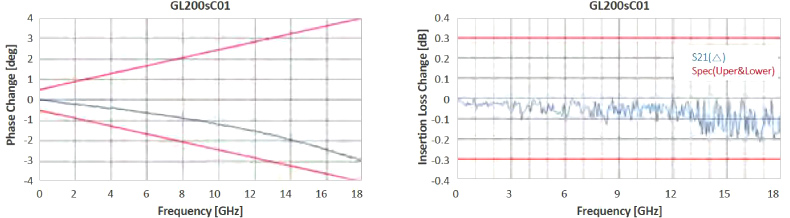

Cable Insertion & Stability with Flexure

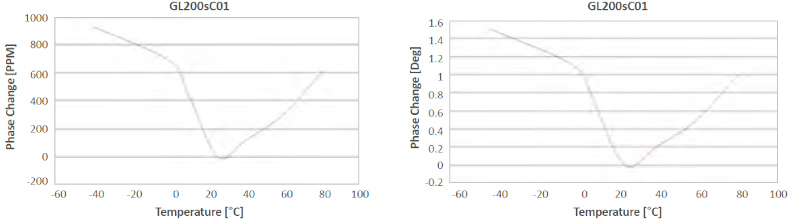

Cable Phase Stability with Temperature

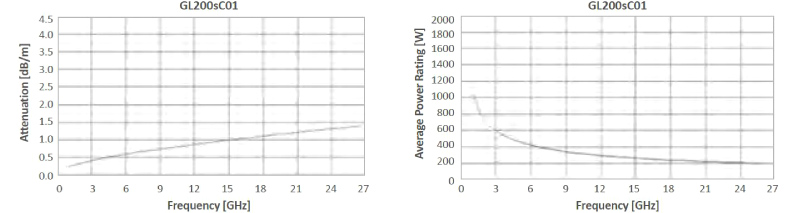

Cable Attenuation & Power

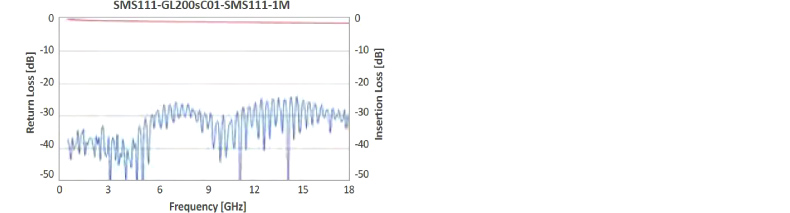

Test Result
