New Products
26 GHz SMA Connectors
- DC to 26.5 GHz
- Mechanically Compatible with 2.92mm & 3.5mm Connectors
- Suitable for High-speed Wireless application
Introduction
GigaLane High Performance SMA Connectors are designed for applications up to 26.5 GHz in the common high frequency substrates and it is suitable for military and microwave frequencies.
기가레인의 고성능 SMA 커넥터는 일반적인 고주파 기판에서 최대 26.5 GHz의 애플리케이션 용으로 설계되었으며, 군사용 및 마이크로파 주파수에 적합합니다.
기가레인의 고성능 SMA 커넥터는 일반적인 고주파 기판에서 최대 26.5 GHz의 애플리케이션 용으로 설계되었으며, 군사용 및 마이크로파 주파수에 적합합니다.

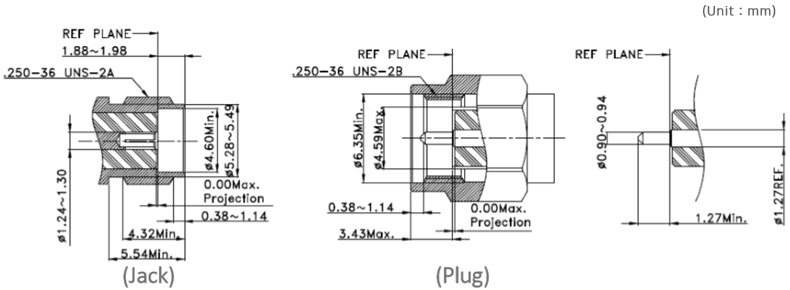

Interface Standards (MIL-STD-348)
Specification
| Frequency | High performance SMA DC ~ 26.5 GHz |
| Impedance | 50 Ω |
| VSWR | 1.2 : 1 (@ 18 GHz) 1.3 : 1 (@ 26.5 GHz) |
| Insulation Resistance | 5000 MΩ |
| Dielectric Withstand Voltage | 1000 Vrms max |
| Contact Resistance - Outer Conductor - Inner Conductor |
2mΩ max 3mΩ max |
| Insertion Loss | 0.4 dB max (@ 26.5 GHz) |
| RF Leakage | -90 dB |
| Power Handling | 200W (@ 2 GHz) |
Mechanical
| Mating Cycle(Durability) | 500 |
| Recommended Mating Torque Proof Torque |
Proof Torque 0.9 ~ 1.13 Nm / 8 ~ 10 lbs 1.7 Nm / 15.0 lbs |
| Coupling Nut Retention Force | 270 N / 27.7 kfg / 61 lbs |
| Center Contact Retention Force | 2.6 pound (axial) |
Environmental
| Temperature | -40˚C to + 125˚C |
| Thermal Shock | MIL-STD-202, method 107 |
| Corrosion (Salt Spray) | MIL-STD-202, method 101 |
| Shock | MIL-STD-202, method 213 |
| Vibration | MIL-STD-202, method 204 |
| Moisture Resistance | MIL-STD-202, method 106 |
Material
| Body | Stainless Steel Brass |
Passivated
Gold Plated |
| Center Contact | Beryllium Copper(BeCu)
Brass |
Gold Plated Gold Plated |
| Insulator | PTFE | ㅡ |

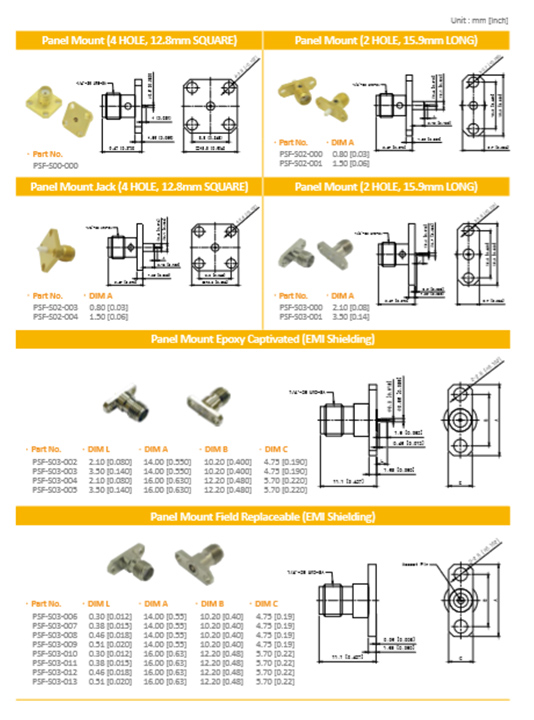

JACK (Female)
