부품 테스트

DC 저항계

Model	Description	Max Range	Basic Accuracy	Display	Interface

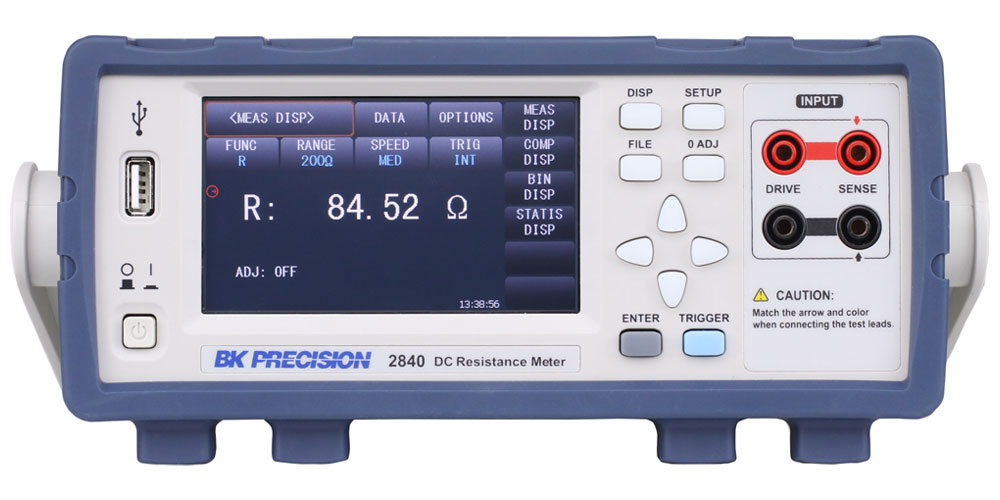

2840	20 kΩ Milliohm Meter	1 μΩ ~ 20 kΩ	0.1%	4.3" color Touch Screen	RS232	USB	-	-

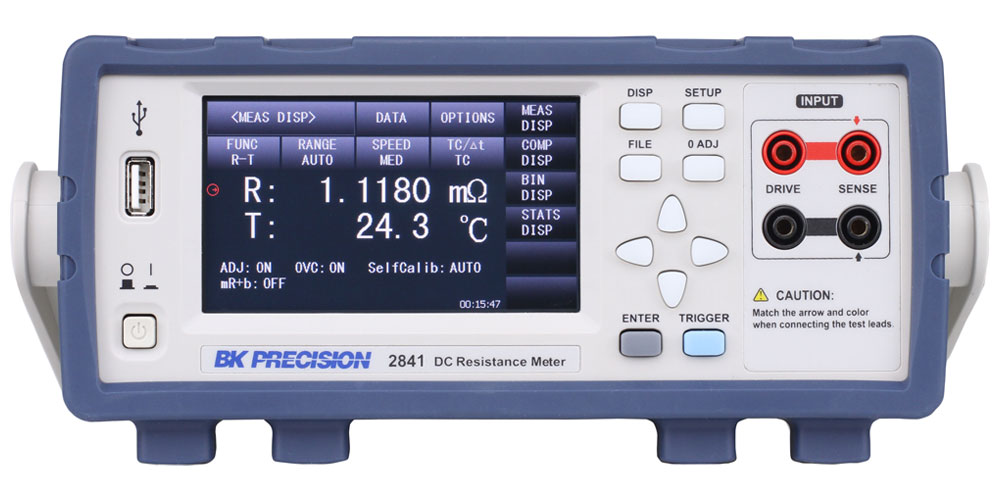

2841	100 MΩ Milliohm Meter	0.1 μΩ ~ 100 MΩ	0.01%		RS232	USB	LAN	-

벤치 LCR 미터

Model	Description	Max Range	Basic Accuracy	Display	Interface
889B	200KHz LCR Meter	31.83kH / 15.91 mF / 20 MΩ	0.10%	Dual LCD	USB	-	-	-

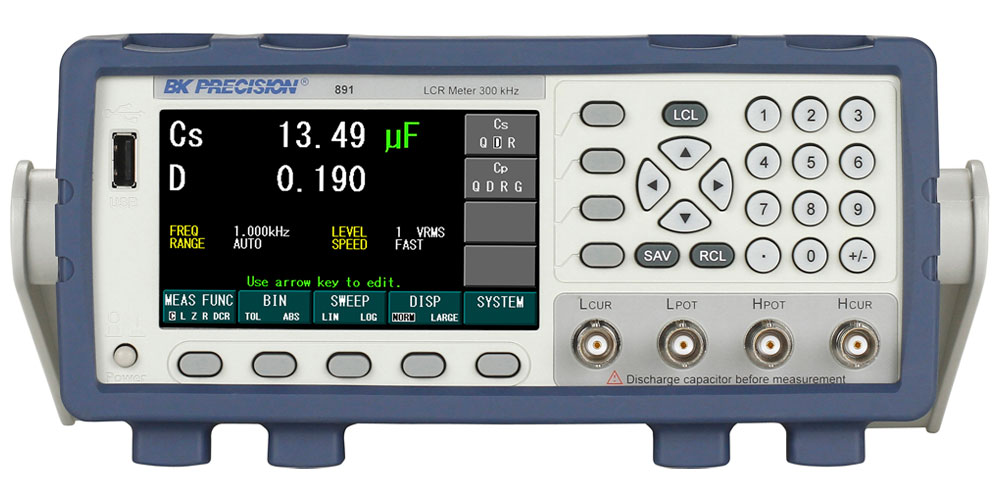

891	300KHz LCR Meter	150kH / 80 mF / 20 MΩ	0.05%	4.3" color LCD	USB	GPIB	LAN	-

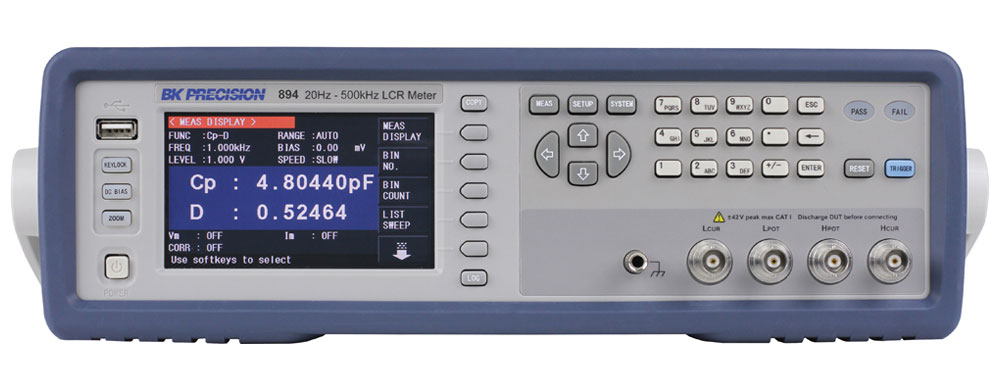

894	500KHz LCR Meter	150kH / 150mF / 100 MΩ	0.05%	4.3" color TFT LCD	RS232	USB	LAN	-

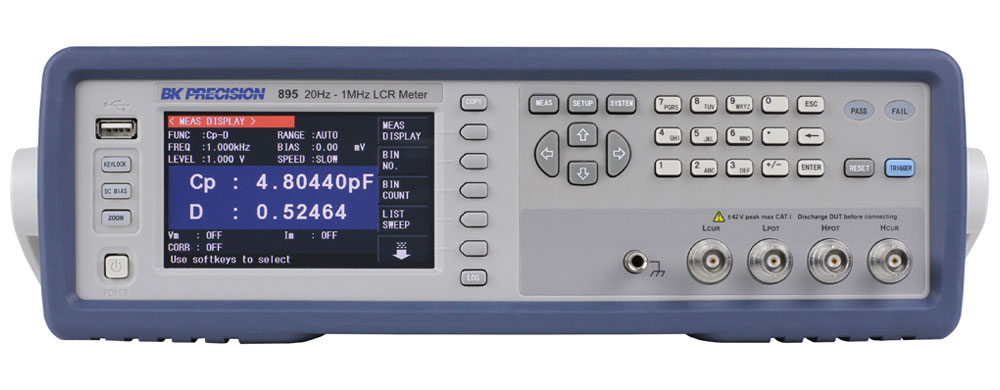

895	1MHz LCR Meter	150kH / 150mF / 100 MΩ	0.05%		RS232	USB	LAN	GPIB

핸드헬드 LCR 미터

Model	Description	Max Range	Basic Accuracy	Display	Interface

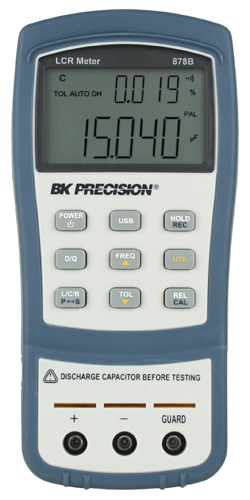

878B	1KHz LCR Meter	1 kH / 20 mF / 10 MΩ	0.5%	4000-count Dual LCD	mini USB	-	-	-
879B	10KHz LCR Meter	1 kH / 20 mF / 10 MΩ	0.5%		mini USB	-	-	-

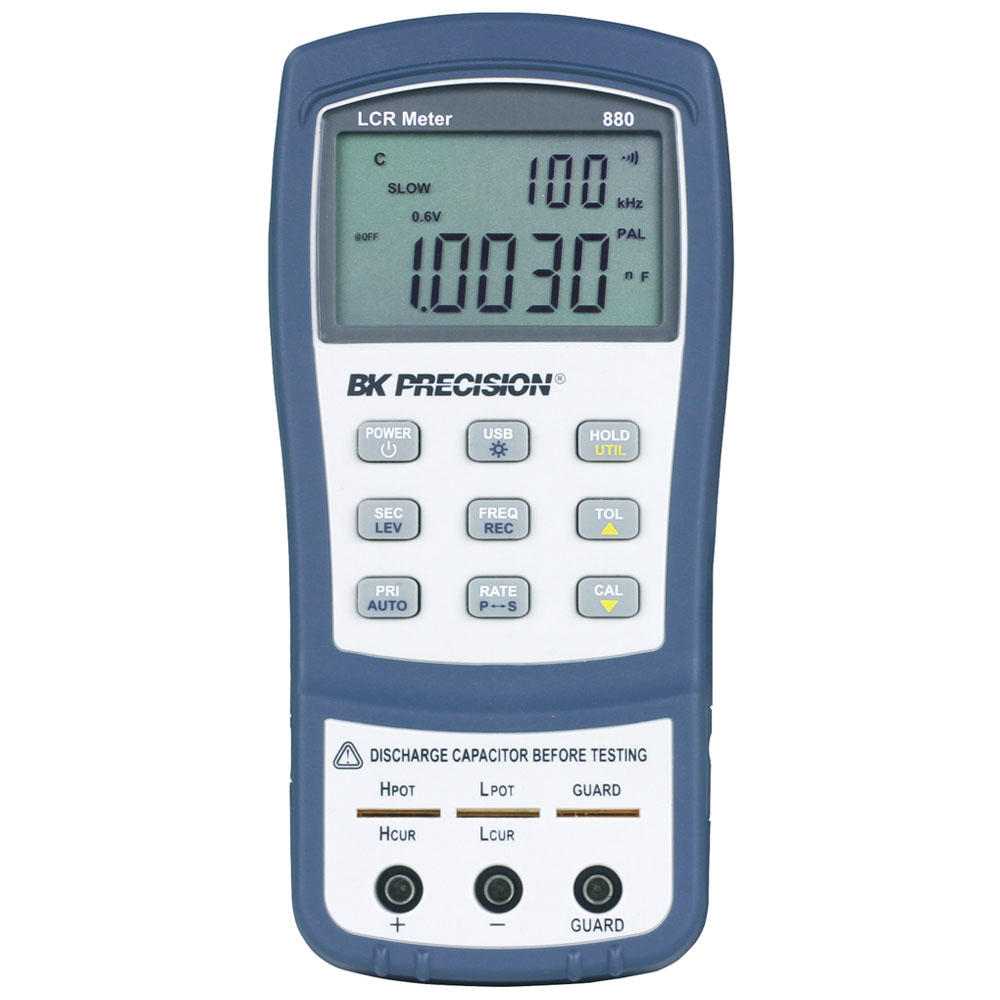

880	100KHz LCR Meter	1 kH / 20 mF / 100 MΩ	0.1%		mini USB	-	-	-

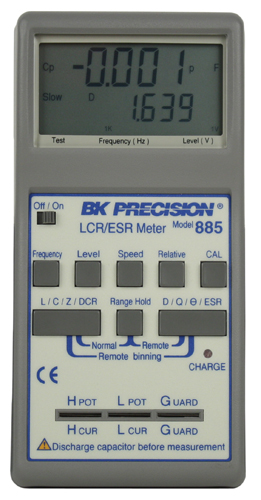

885	10KHz LCR Meter	31.83 kH / 15.91 mF / 20 MΩ	0.2%	Dual LCD	-	-	-	-

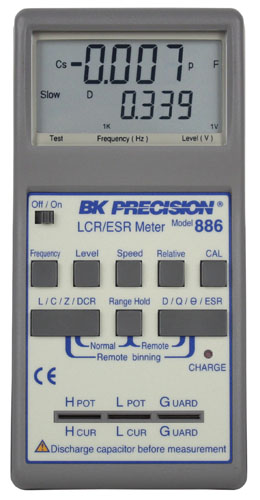

886	100KHz LCR Meter	31.83 kH / 15.91 mF / 20 MΩ	0.2%		-	-	-	-

핸드헬드 캐패시턴스 미터

Model	Description	Max Range	Basic Accuracy	Display	Interface

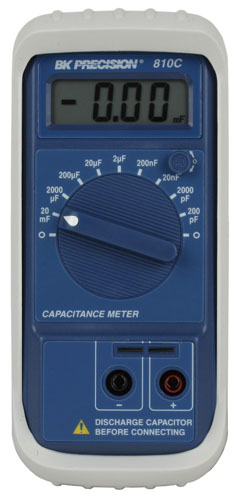

810C	20mF Capacitance Meter	200 pF ~ 20 mF	0.5%	4-digit LCD	-	-	-	-

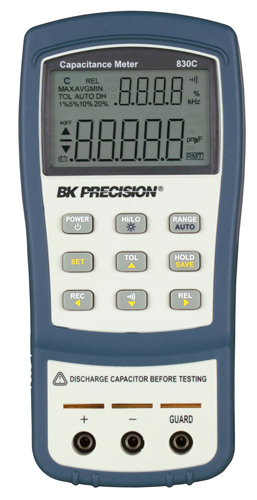

830C	200mF Capacitance Meter	100 pF ~ 200 mF	0.5%	4 1/2-digit Dual Display	mini USB	-	-	-
890C	50mF Capacitance Meter	100 pF ~ 50 mF	0.5%		mini USB	-	-	-

인서킷 ESR 미터

Model	Description	Max Range	Basic Accuracy	Display	Interface

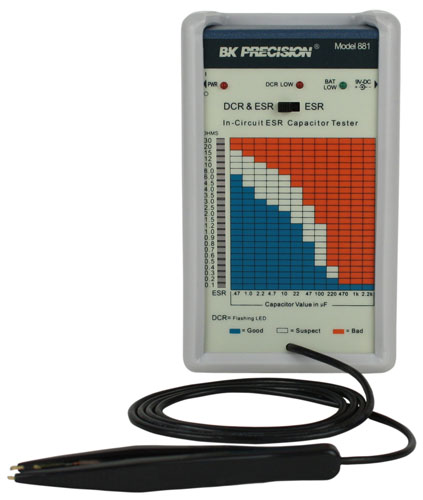

881	ESR & DC Resistance meter	2200 μF	n/a	n/a	-	-	-	-

로직 프로브

Model	Description	Max Range	Basic Accuracy	Display	Interface

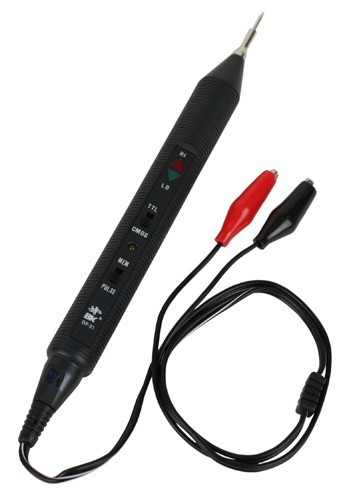

DP 21	20MHz Logic Probe	20 MHz	n/a	n/a	-	-	-	-

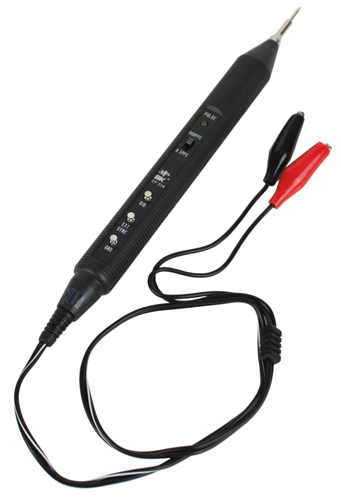

DP 31A	400Hz Logic Probe	400 Hz	n/a	n/a	-	-	-	-

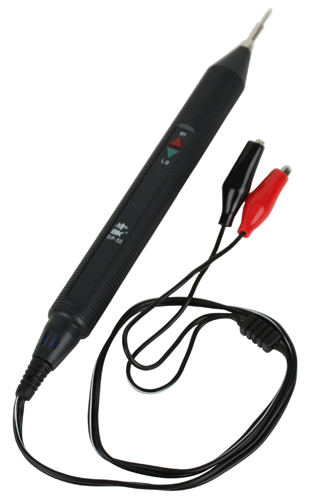

DP 52	50 mHz Logic Probe	50 mHz	n/a	n/a	-	-	-	-

IC 테스터

Model	Description	Max Range	Basic Accuracy	Display	Interface

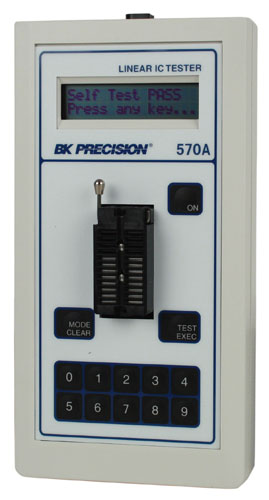

570A	Linear IC Tester	n/a	n/a	LCD Display	-	-	-	-

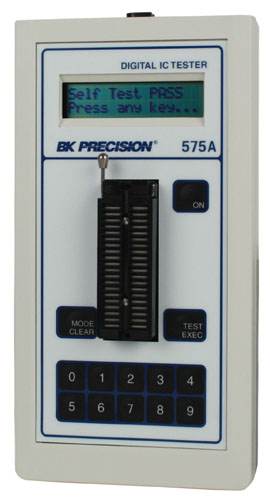

575A	Digital IC Tester	n/a	n/a	LCD Display	-	-	-	-
